Foundation failure is the most expensive callback a contractor can face. While traditional spray-on bituminous coatings have been the industry standard for decades, they possess a fundamental flaw: they rely on a perfect, unbroken bond with a substrate that is guaranteed to crack.

For custom home builders, foundation contractors, and commercial developers, the shift toward DELTA®-MS dimpled membrane isn't just about better waterproofing—it’s about risk mitigation, labor efficiency, and long-term structural integrity.

The Mechanical Failure of Spray-Applied Systems

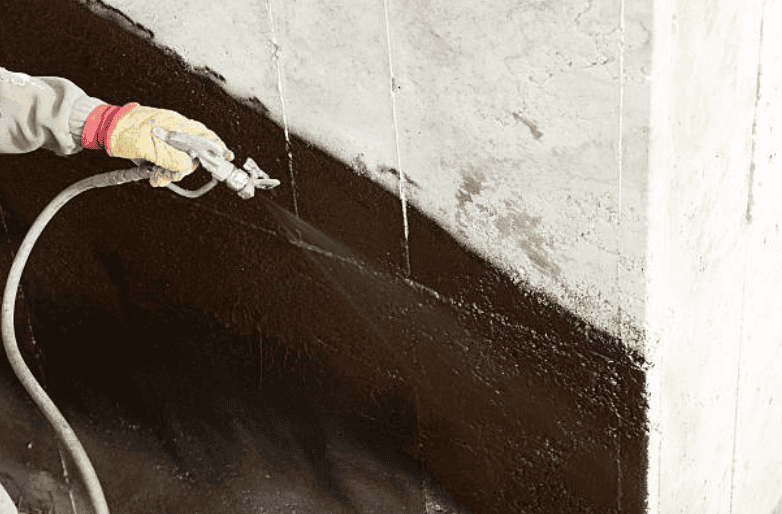

Spray-on "dampproofing" is a passive solution. It is a thin layer of asphalt or polymer that attempts to block moisture. However, foundations are dynamic. As concrete cures and the ground settles, hairline cracks are inevitable.

When the concrete cracks, a spray-on membrane—which is bonded directly to the surface—tears. This creates a direct path for water ingress. Furthermore, spray systems do nothing to address hydrostatic pressure. Water is pressed against the wall, looking for the smallest imperfection to penetrate.

Why DELTA®-MS is the Superior Professional Choice

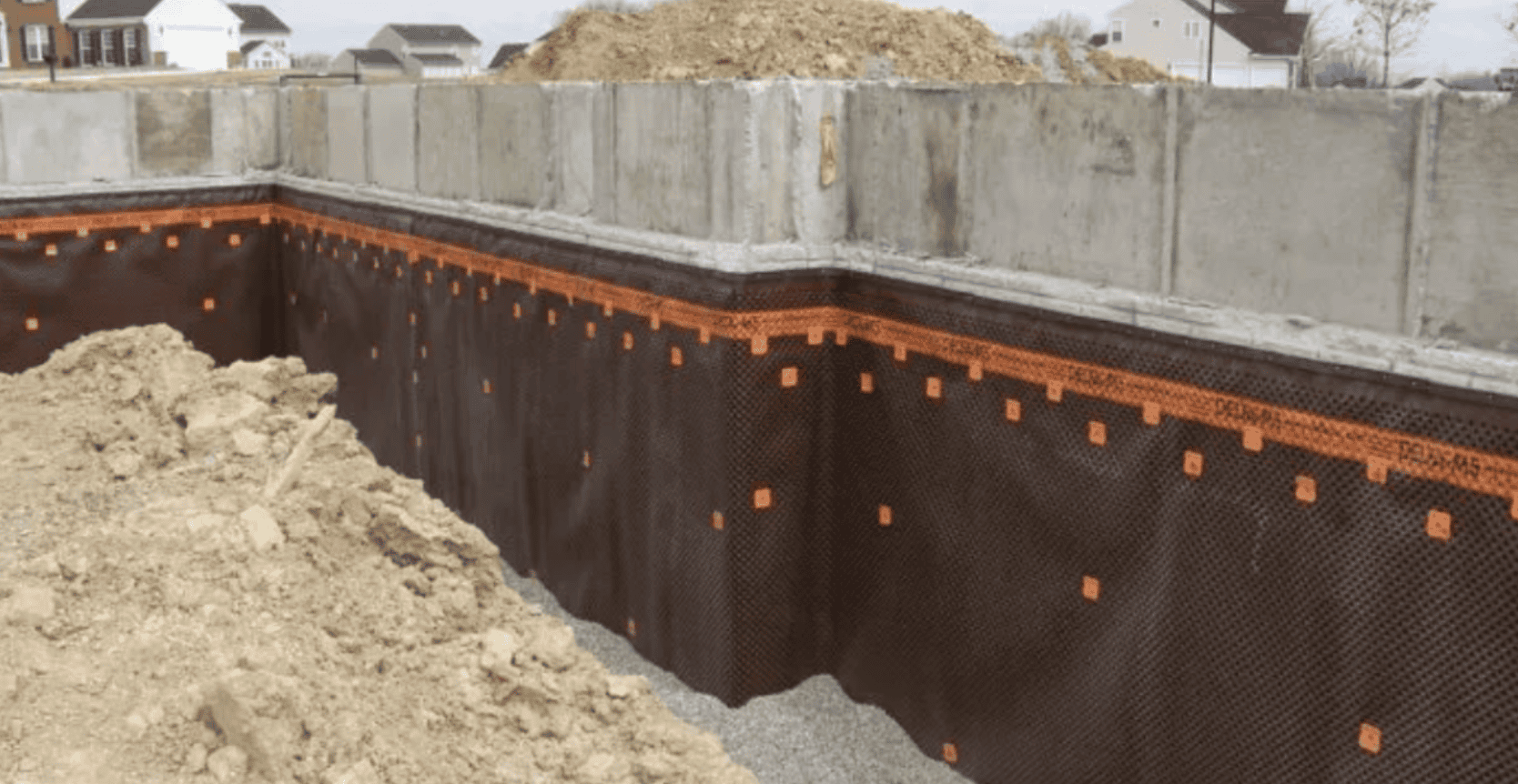

DELTA®-MS is a heavy-duty, high-density polyethylene (HDPE) membrane. Unlike sprays, it is uncoupled from the foundation wall. It serves as a physical barrier and a functional drainage system.

1. Air-Gap Technology and Hydrostatic Relief

The defining feature of DELTA®-MS is its dimpled vacuum-formed pattern. These dimples create a 5/16-inch (8 mm) air gap between the soil and the foundation wall.

• Pressure Relief: Instead of water pushing against the concrete, it hits the membrane and falls through the air gap to the footing tile.

• Secondary Drainage: If any ground moisture manages to get past the first layer, the air gap ensures it drains away before it can reach the foundation.

2. High-Density Polyethylene (HDPE) Durability

Spray-on coatings degrade. Soil acids, alkaline conditions in the concrete, and root penetration eventually eat away at bituminous layers. DELTA®-MS is made from high-performance HDPE, which is:

• Chemically Inert: Resistant to soil acids and minerals.

• Root-Proof: Provides a physical shield that vegetation cannot penetrate.

• Service Life: Rated for a performance life of over 50 years, often outlasting the structure itself.

3. Immediate Backfilling: The Profitability Factor

For a general contractor, the "time to backfill" is a critical KPI.

• Spray Systems: Require specific temperature windows and 24–48 hours of curing time. If it rains before the spray cures, the product can wash off, requiring a total re-application.

• DELTA®-MS: Can be installed in any weather condition—rain, snow, or freezing temperatures. Because there is zero curing time, you can install and backfill on the same day. This keeps the heavy machinery moving and the project on schedule.

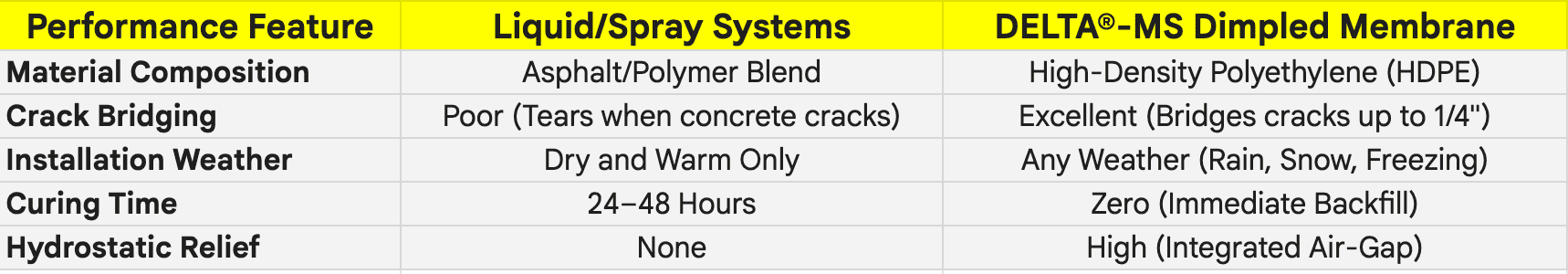

Technical Comparison: DELTA®-MS vs. Liquid Membranes

Installation Efficiency for Contractors

A winning foundation strategy is only as good as its execution. DELTA®-MS is engineered for fast, reliable installation that reduces labor costs:

• Large Roll Format: Available in various heights (up to 9'10") to minimize seams.

• Mechanical Fastening: Using DELTA®-FAST’ners and DELTA®-FLASH termination bars ensures the membrane stays permanently in place without sliding during backfill.

• Substrate Forgiveness: Unlike sprays, DELTA®-MS can be applied over damp concrete or irregular surfaces, eliminating the need for extensive wall preparation.

Protecting Your Reputation and Your Bottom Line

For custom home builders, the basement is often the most valuable square footage in the house. A damp basement or a musty smell is a failure of the building envelope. By using DELTA®-MS, you provide a "double defense" system:

1. A physical HDPE barrier.

2. A permanent drainage path.

This system ensures that even if the foundation settles, the interior remains dry, protecting the finishings and your professional reputation.

Secure Your Next Project with DELTA®-MS

Don't let your project's foundation depend on a thin layer of spray. Protect your build with the industry’s most trusted dimpled membrane.

Shop DELTA®-MS and Installation Accessories at Spycor Building Products

Competitive pricing, bulk availability, and fast shipping for contractors and developers.

Frequently Asked Questions (FAQ)

Is DELTA®-MS a replacement for waterproofing?

DELTA®-MS is a high-performance foundation wrap that provides both dampproofing and drainage. When installed correctly, its air-gap technology manages water more effectively than a standard waterproofing spray by relieving hydrostatic pressure.

Can DELTA®-MS be used on ICF foundations?

Yes. DELTA®-MS is highly recommended for Insulated Concrete Forms (ICF). It protects the foam from damage during backfill and provides the necessary drainage path without the need for chemical-heavy sprays that can degrade the foam.

How does DELTA®-MS handle corner details?

The membrane is flexible enough to be wrapped around corners easily. For a professional seal, use DELTA®-FLASH termination bars at the top grade level and ensure all overlaps follow the manufacturer's 6-inch (15 cm) specification.

Does this membrane help with radon gas?

While DELTA®-MS is primarily a moisture and drainage barrier, its HDPE construction is highly impermeable. When used as part of a sealed foundation system, it can assist in managing soil gas entry.

Why is HDPE better than LDPE or recycled plastics?

High-density polyethylene (HDPE) offers significantly higher compression strength. This is vital for foundation applications where the weight of the backfilled soil would crush weaker, low-density membranes, closing the air gap and neutralizing the drainage benefit.
