A concrete slab poured directly onto the prepared earth is a recipe for moisture failure. For decades, the standard procedure to protect this critical foundation element has involved laying down a deep, labor-intensive layer of gravel. That tradition, however, is being rapidly replaced by high-performance, cost-efficient dimple mats.

Leading home builders and contractors are now specifying DELTA®-MS Underslab as the definitive, modern alternative to traditional sub-base materials. This innovative dimpled membrane not only provides the necessary capillary break but also functions as a powerful vapor retarder, delivering superior, long-term moisture protection while dramatically cutting site costs, time, and logistical headaches.

This post delves into the critical differences between the old gravel sub-base and the DELTA®-MS Underslab dimple mat, detailing exactly why the modern solution is the smarter choice for construction projects focused on efficiency and durability.

The Hidden Threat: Why Underslab

Moisture Control is Non-Negotiable

The ground beneath a concrete slab is a constant source of moisture. Even seemingly dry soil contains water vapor and sometimes, free water. Concrete itself is a porous material, much like a sponge. This porosity leads to a critical problem called capillary rise (or wicking), where moisture is pulled up from the earth and into the concrete through tiny microscopic channels.

This insidious moisture intrusion is not just a nuisance; it’s a threat to the entire structure:

• Mold and Health: Moisture seeping through the slab promotes mold and mildew growth on finished floor surfaces, creating unhealthy indoor air quality.

• Flooring Failure: Adhesives for flooring (tile, wood, or vinyl) fail when exposed to constant moisture migration, leading to warping, delamination, and costly repairs.

• Compromised Structure: Long-term moisture, alkalinity, and temperature fluctuations degrade the concrete itself, affecting its structural integrity and longevity.

• Radon Mitigation: A properly sealed underslab system is essential for integrating a radon mitigation system, which is required in many regions.

To protect the foundation and ensure a permanently dry slab, a dedicated capillary break is essential. This break must physically prevent the upward migration of moisture from the soil into the concrete.

The Old Way: Analyzing the True Cost of a

Gravel Sub-Base

The traditional solution—laying a 4-inch layer of crushed, clean, angular gravel beneath the slab—is effective at creating a capillary break, provided it meets strict specifications and is installed perfectly. However, the logistical and financial burden of gravel is massive, turning it into a significant cost center for any project.

Logistical and Material Costs

Contractors must account for the full life cycle of gravel usage:

1. Material Sourcing: Gravel is a heavy, commodity product, making its purchase price fluctuate and, more importantly, increasing its transport cost exponentially.

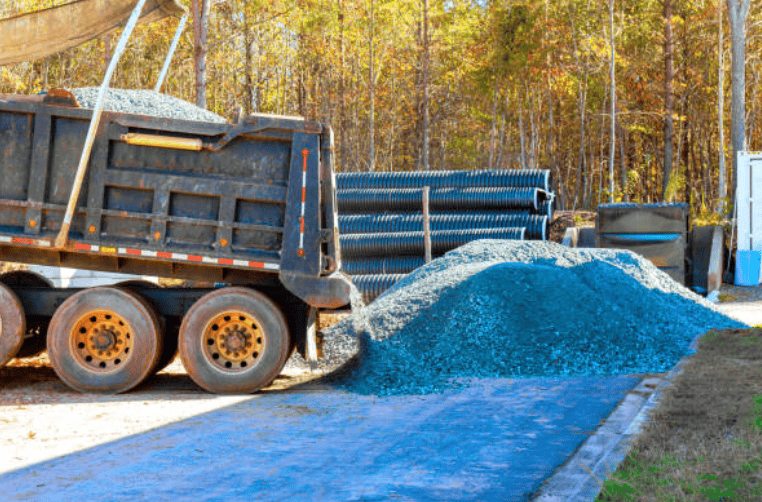

2. Delivery and Storage: Massive dump trucks are required to deliver the material. The large, sprawling piles of gravel consume valuable jobsite space, complicating access and staging for other trades.

3. Excavation and Handling: Using gravel as a sub-base requires additional excavation depth to accommodate the 4-inch minimum layer. This means more dirt removal and disposal.

4. Heavy Equipment: Spreaders, compactors, and heavy machinery are required to uniformly distribute and compact the gravel to achieve the proper density and grade. This machinery incurs rental fees, fuel costs, and skilled operator labor.

5. Labor Intensity: Shoveling, raking, and grading hundreds of cubic feet of heavy stone is back-breaking, time-consuming labor that adds days to the project timeline.

When you factor in the rental of heavy equipment and the high cost of skilled labor hours required for delivery, grading, and compaction, the gravel sub-base ceases to be a simple material cost and becomes a major drain on the budget and schedule.

The Modern Solution: DELTA®-MS

Underslab – A True Gravel Alternative

The shift to DELTA®-MS Underslab addresses every inefficiency inherent in the gravel sub-base method. This dimple mat underslab solution fundamentally changes the construction process by consolidating the capillary break, drainage, and vapor retarder functions into a single, light-weight, high-performance product.

Unmatched Installation Efficiency and Labor Savings

The most significant benefit for contractors and home builders is the reduction in labor and installation time. The DELTA®-MS Underslab comes in large, easily manageable rolls (available in sizes up to 9' 10" x 65.6' for 645 sqft rolls), which are simply unrolled across the prepared sub-grade.

• No Excavation Required: The thin, high-performance membrane eliminates the need for the deep excavation required by a 4-inch gravel layer, saving time and dirt disposal costs.

• No Heavy Equipment: No compactors, dump trucks, or spreaders are needed. The membrane requires zero compaction time.

• Rapid Deployment: A small crew can install hundreds of square feet of the dimple mat underslab in a fraction of the time it takes to prepare, deliver, and spread a gravel bed.

• Simplified Sealing: Joints between rolls are easily sealed using DELTA®-FLEXX-BAND Sealing Tape, ensuring continuity of the vapor retarder function.

By eliminating excavation, material transport, and compaction labor, the DELTA®-MS Underslab acts as a genuine cost-saving alternative, allowing builders to reallocate crew hours to other critical stages of the project.

The Dual Function: Vapor Retarder and Capillary Break

Unlike a bed of gravel, which only provides a capillary break, the DELTA®-MS Underslab performs a dual, interlocking function vital for long-term slab protection.

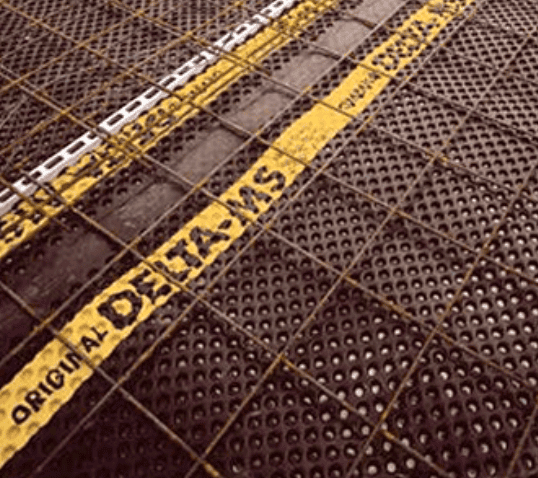

1. Capillary Break: The dimpled structure creates a continuous air space (a void) between the soil and the concrete slab. Since moisture cannot pass through a void, capillary wicking is physically prevented. 2. Vapor Retarder: The membrane itself is a high-performance vapor retarder made of High-Density Polyethylene (HDPE). This material is virtually impermeable to water vapor, stopping moisture migration that might occur through imperfections in the soil or ground vapor pressure.

This combination ensures the concrete slab is protected from both liquid water and water vapor, far surpassing the capability of a gravel sub-base paired with a traditional, thin polyethylene sheeting.

Structural Integrity and Compressive Strength

Contractors often worry that a dimpled mat cannot support the weight of a poured concrete slab as effectively as gravel. However, DELTA®-MS Underslab is specifically engineered for this load. Its co-extruded HDPE dimpled sheet provides outstanding compressive strength and impact resistance. Once the concrete slab is poured and cured on top of the membrane, the membrane acts as a robust, permanent layer of protection, capable of enduring the rigorous installation process and the long-term static load of the finished structure.

Technical Deep Dive: Why HDPE Dimple

Mat is Superior

The superiority of the DELTA®-MS Underslab is rooted in its material science and manufacturing process, which elevates it above generic dimple mats and traditional building materials.

Co-Extruded HDPE for Longevity

The membrane is manufactured using an exclusive co-extrusion process involving three layers:

• Inner Layer (The Core): Composed of 60% recycled High-Density Polyethylene (HDPE), which promotes unrivaled sustainability and lowers the environmental impact of the product.

• Outer Layers: Composed of a specific grade of virgin HDPE.

This virgin outer layer is critical because it shields the recycled core from two major forms of degradation: oxidation and chemical attack. The outer virgin HDPE stabilizes the product against chemical and environmental stress cracking caused by exposure to alkaline concrete and acidic or chemically-treated soils, guaranteeing its long-term performance as a vapor retarder and capillary break for the life of the building.

Optimized Drainage and Gas Ventilation

While primarily a moisture barrier, the dimple mat's continuous air channel also serves two other critical functions:

1. Underslab Drainage: In the event of temporary high water tables or minor flooding, the air space allows any free water that reaches the membrane to drain laterally beneath the slab to a sump or collection system.

2. Gas Ventilation: The air space allows for the controlled venting of soil gases, such as radon or methane, making the DELTA®-MS Underslab an integral component of any underslab gas mitigation system required by code.

By choosing DELTA®-MS Underslab, builders are not just installing a single product; they are installing an entire system that comprehensively manages moisture, air, and soil gas dynamics beneath the concrete slab.

Protect Your Investment: The

Homeowner’s View

For homeowners, the technical specifications translate directly into a safer, healthier, and more durable home. Specifying the DELTA®-MS Underslab system means investing in permanent concrete slab protection that prevents the conditions for mold growth, protects valuable flooring materials, and ensures the foundation remains dry and structurally sound for decades to come. This peace of mind, combined with the superior environmental profile of the 60% recycled HDPE core, makes this dimple mat a premium, smart investment for any new construction.

Conclusion

The evidence overwhelmingly supports the shift from cumbersome, labor-intensive gravel to the highly efficient DELTA®-MS Underslab. By consolidating the capillary break, drainage, and vapor retarder into a single, easy-to-install dimple mat underslab, contractors gain significant cost savings in materials, logistics, and labor, without compromising the integrity of the moisture management system. Choosing this advanced HDPE solution ensures a dry, durable, and long-lasting concrete slab foundation.

Order Now at spycorbuilding.com and make the switch to DELTA®-MS Underslab for your next underslab sub-base project!

Frequently Asked Questions (FAQ)

What is the primary function of DELTA®-MS Underslab?

Its primary function is to serve as a high-performance capillary break and vapor retarder beneath a concrete slab. The dimpled structure stops moisture from wicking up from the ground into the concrete, providing long-term protection against mold and structural degradation.

Does DELTA®-MS Underslab eliminate the need for gravel?

Yes, in most applications, the Gravel vs. Dimple Mat: A Cost-Saving Alternative for Underslab Sub-BaseDELTA®-MS Underslab is designed to significantly reduce or entirely eliminate the need for an expensive gravel sub-base, saving costs on material, transport, and labor associated with heavy equipment and compaction.

Is the dimple mat strong enough to support the concrete pour?

Absolutely. The DELTA®-MS Underslab is manufactured from robust HDPE with outstanding compressive strength specifically to withstand the weight and impact of a concrete pour and the long-term static load of the finished slab and structure.

How are the seams sealed?

For continuous protection as a vapor retarder, the seams and overlaps between rolls of DELTA®-MS Underslab must be sealed using DELTA®-FLEXX-BAND Sealing Tape, which creates an impermeable bond.
