Choosing the right fire extinguisher cabinet is a small detail that can create massive headaches during a final building inspection. For commercial general contractors, the choice between recessed and surface-mount cabinets isn't just about aesthetics—it’s about balancing labor costs, wall depth, and strict ADA compliance.

If you are managing a high-traffic commercial build, a healthcare facility, or a sleek corporate office, the "wrong" cabinet choice can lead to failed inspections or expensive wall modifications.

This guide breaks down the practical differences between recessed, semi-recessed and surface-mount options to help you streamline your next install.

The Strategic Importance of Fire Extinguisher Cabinet Selection

Every commercial project has unique wall assemblies and space constraints. As a contractor, you need a commercial fire extinguisher cabinet supplier that provides units meeting both life safety codes and architectural standards.

Why Your Choice Matters for the Bottom Line:

• Labor Hours: Recessed units require precise framing; surface-mount units require minimal wall prep.

• Code Compliance: ADA (Americans with Disabilities Act) regulations dictate how far a cabinet can protrude into a hallway.

• Fire Ratings: Penetrating a fire-rated wall requires a fire rated fire extinguisher cabinet to maintain the integrity of the assembly.

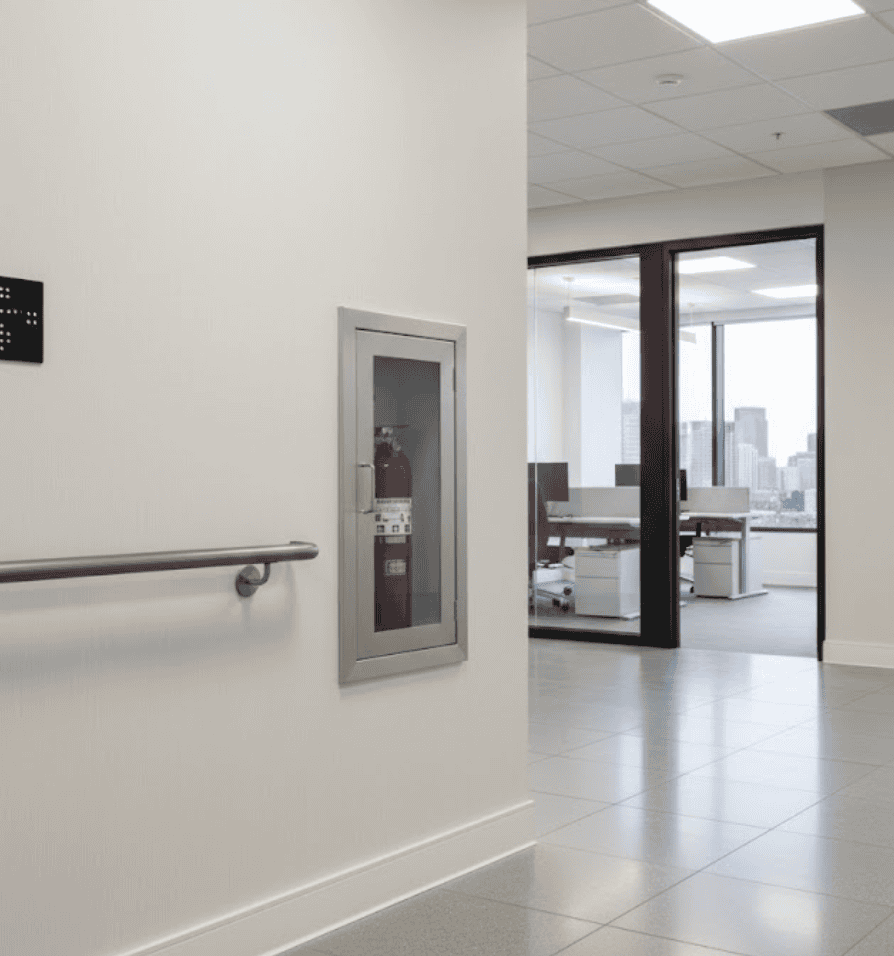

Recessed Fire Extinguisher Cabinets: The Architectural Gold Standard

When the project calls for a "clean" look, a recessed fire extinguisher cabinet is the primary choice. These units sit inside the wall cavity, leaving only the door and a small trim frame visible.

Best For:

• High-Traffic Corridors: Because they sit flush, they do not obstruct foot traffic.

• Modern Aesthetics: Essential for architectural fire extinguisher cabinets where a minimalist design is required.

• Tight Hallways: The easiest way to ensure you meet 4-inch protrusion limits.

Installation Considerations:

Installing a recessed unit requires coordination during the framing stage. You must account for the "Rough Opening" (RO) dimensions. If you are installing into a fire-rated wall, you must use a "Fire-Rated" (FX) version of the cabinet, which includes a double-wall construction and specialized insulation to prevent fire from jumping through the wall penetration.

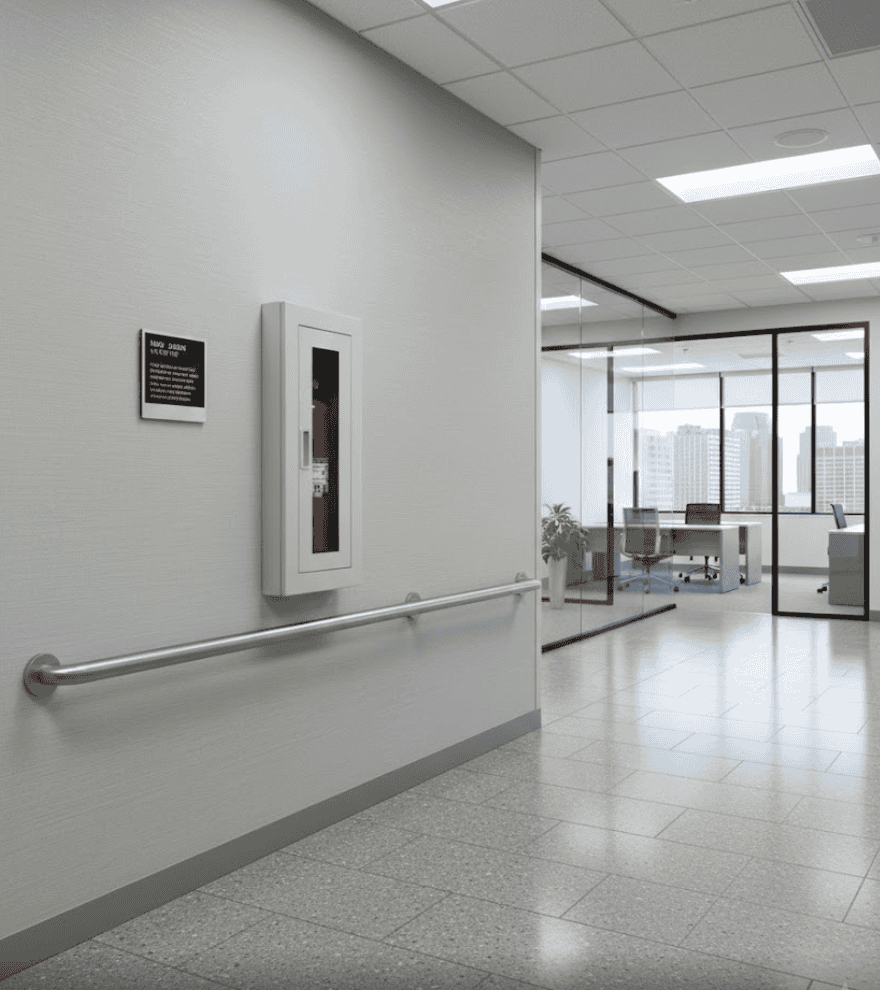

Surface-Mount Fire Extinguisher Cabinets: Speed and Versatility

A surface mount fire extinguisher cabinet is installed directly onto the face of the finished wall. No hole-cutting is required, making these the go-to for retrofits or masonry walls where cutting is cost-prohibitive.

Best For:

• Retrofit Projects: When adding fire protection to an existing building.

• Concrete or CMU Walls: Avoid the labor-intensive process of cutting into masonry.

• Fast Installs: Can be mounted in minutes with standard anchors.

The ADA Warning:

Surface-mount cabinets typically protrude 6 to 8 inches from the wall. In a standard 48-inch hallway, this may violate ADA compliant fire extinguisher cabinets standards, which generally limit protrusions to 4 inches. If you are using surface-mount units in a public corridor, ensure they are placed where they won't become a "protruding object" hazard for the visually impaired.

Meeting the Code: ADA and Fire Ratings

As a commercial contractor, your biggest hurdles are the Fire Marshal and the Building Inspector.

ADA Compliant Fire Extinguisher Cabinets

ADA standards require that objects protruding from walls between 27" and 80" above the floor must not stick out more than 4 inches into the circulation path.

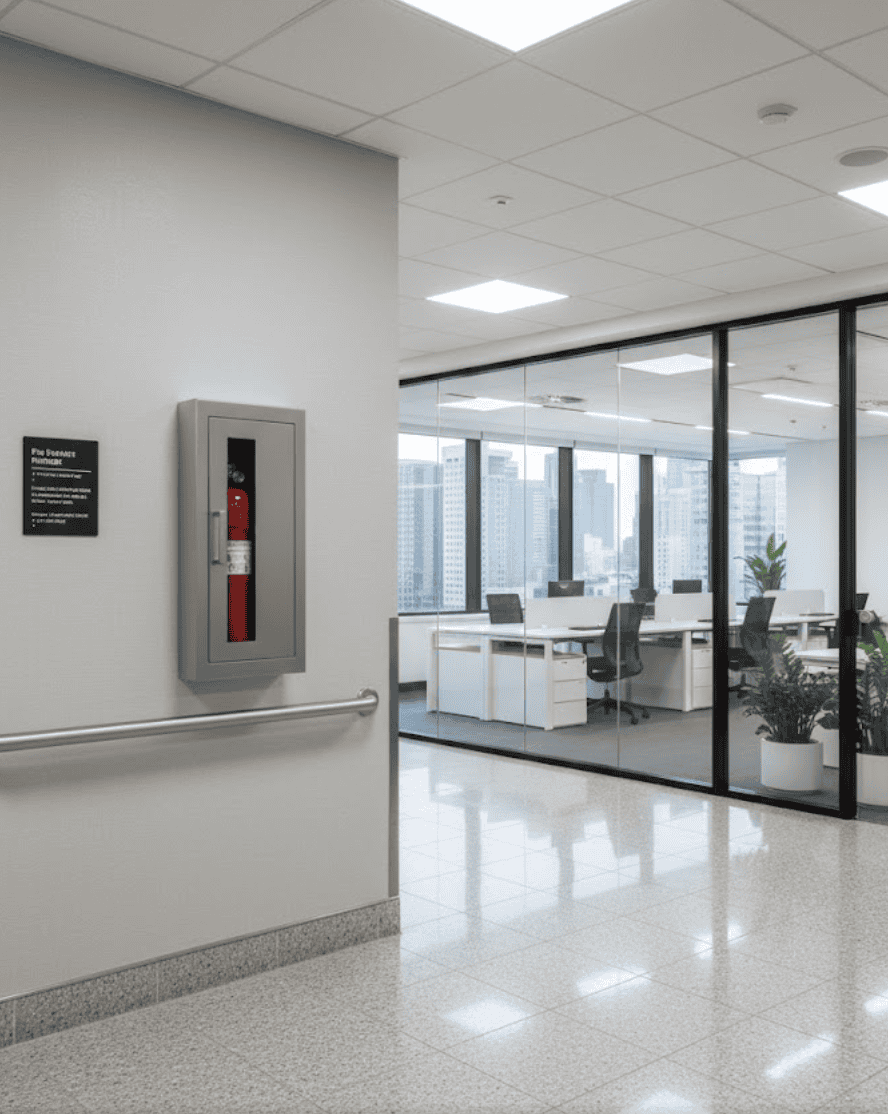

• Semi-Recessed Cabinets: A middle-ground option where the cabinet sticks out 1.5" to 2.5", staying well within the 4-inch limit while requiring less wall depth than a fully recessed unit.

Fire Rated Fire Extinguisher Cabinets

When you cut a hole in a 1-hour or 2-hour fire-rated wall to fit a recessed cabinet, you have compromised that wall. To fix this, you must buy a cabinet specifically labeled as "Fire-Rated." These units are tested to ensure that the fire-resistance of the wall remains intact despite the penetration.

Semi-Recessed: The "Contractor's Secret" Solution

Where to Buy Fire Extinguisher Cabinets for Commercial Projects

Sourcing these units shouldn't be a bottleneck for your project. Spycor is a leading commercial fire extinguisher cabinet supplier, offering a massive inventory of:

• Steel, Aluminum, and Stainless Steel finishes.

• Fire-rated (FX) and Non-rated options.

• Full glass, vertical duo, or solid metal doors.

Summary Comparison Table

Feature	Recessed	Semi-Recessed	Surface-Mount
Aesthetics	Clean/Flush	Professional	Functional
Wall Prep	High (Rough Opening)	Medium	Low (Surface Anchor)
ADA Compliance	Best	Excellent	Variable (Check Width)
Best Wall Type	New Stud Walls	Shallow Stud Walls	Masonry / Retrofits

---

Ready to Finish Your Project?

Don't let a "failed inspection" due to a non-compliant cabinet delay your project closeout. Whether you need the sleek look of architectural fire extinguisher cabinets or the rugged durability of a surface mount fire extinguisher cabinet, we have the stock ready to ship.

Get Your Quote & Order Today:

Browse Recessed Fire Extinguisher Cabinets. Shop All Commercial Fire Extinguisher Cabinets

Frequently Asked Questions (FAQ)

1. Do I need a fire-rated cabinet for every wall?

No. You only need a fire rated fire extinguisher cabinet if the wall itself is fire-rated (e.g., a stairwell, occupancy separation wall, or corridor wall). Check your architectural life safety plans.

2. What is the standard height for mounting a cabinet?

NFPA 10 states that extinguishers weighing under 40 lbs must be installed so the top of the extinguisher is not more than 5 feet above the floor. However, ADA reach-range requirements often lower this to 48 inches for the handle/operable parts.

3. Can I use a recessed cabinet in a 2x4 wall?

Yes, but you will likely need a "Semi-Recessed" unit. A fully recessed cabinet typically requires a 6-inch deep wall (2x6 construction) to accommodate the cabinet box and the extinguisher depth.

4. What is the difference between "Full Glass" and "Duo" doors?

"Full Glass" allows for maximum visibility of the extinguisher. "Duo" doors have a smaller window, which is often preferred in schools or high-traffic areas to reduce the risk of glass breakage while still allowing for inspection.
