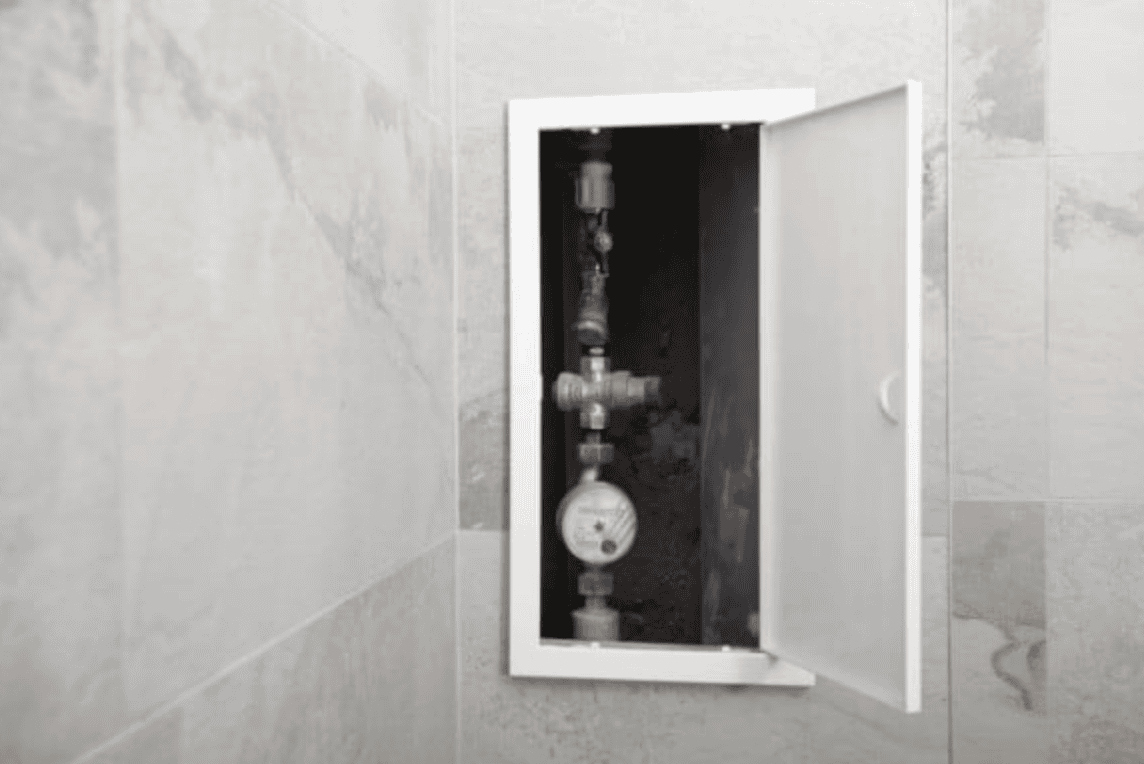

Contractors and home builders prioritize safety and compliance in every project, especially when integrating access points into fire-rated walls. Fire rated access doors for walls provide essential entry to plumbing, electrical systems, and HVAC components while maintaining the integrity of fire barriers. Selecting the right fire rated access door ensures seamless installation, code adherence, and long-term durability in residential and commercial builds.

Fire rated access doors are engineered to withstand high temperatures and prevent the spread of flames and smoke through wall assemblies. For walls, these doors typically achieve ratings up to 3 hours under standards like UL 10B and NFPA 252. Builders often seek options that blend functionality with aesthetics, such as insulated models that minimize heat transfer and feature concealed flanges for drywall finishes.

Spycor.com offers a range of top fire rated access doors tailored for wall applications, including the Cendrex PFI series. These doors stand out for their robust construction, using 20-gauge galvanneal steel for the panel and 16-gauge cold rolled steel for the frame, ensuring resistance to corrosion and daily wear. Insulation with 2-inch thick mineral wool keeps temperature rise low—250°F after 30 minutes and 450°F after 60 minutes in vertical setups—critical for protecting adjacent spaces during a fire event.

Key Features of Fire Rated Access Doors

for Walls

When evaluating fire rated access doors for walls, focus on features that align with project demands. Insulation is paramount; it not only enhances fire resistance but also improves energy efficiency in buildings. Self-closing and self-locking mechanisms, compliant with UL and NFPA standards, eliminate manual intervention, reducing human error in emergencies.

Size versatility accommodates different wall openings. Common dimensions range from 8x8 inches for small utility access to 48x48 inches for larger equipment maintenance. For walls, maximum vertical sizes reach 48x48 inches with an area limit of 2304 square inches, offering flexibility for custom projects. Hinges placed on the height dimension ensure smooth operation, and inside release latches on doors over 12x12 inches provide safe egress if needed.

Locking systems include tool-key operated slam latches and ring-operated options, both self-latching for security. A high-quality white powder coat primer finish allows easy on-site painting to match wall colors, blending the door seamlessly into the architecture.

Top Fire Rated Access Door

Recommendations from Spycor

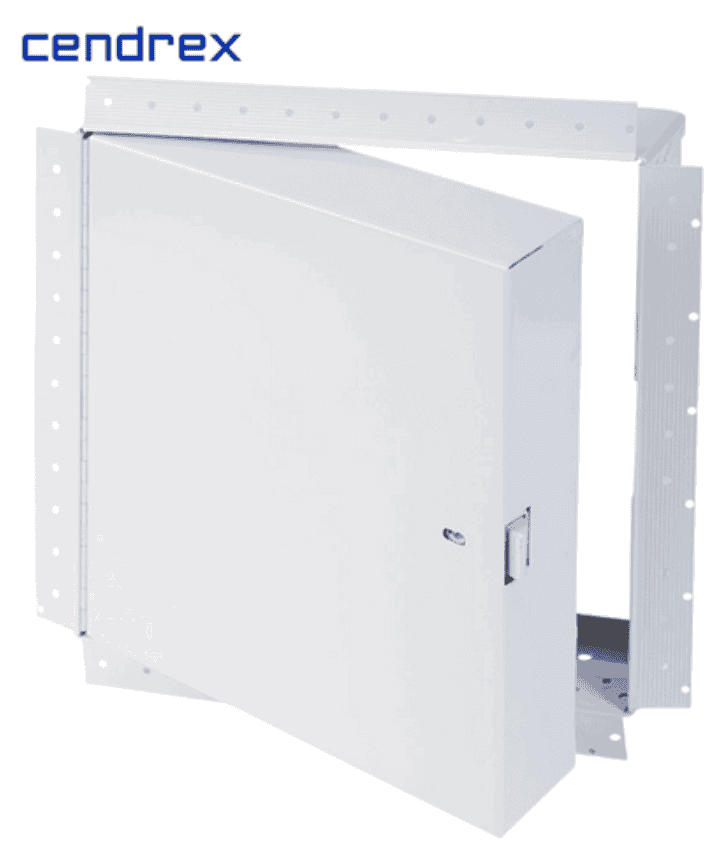

1. Cendrex PFI-GYP 24 x 36 Fire Rated Insulated Access Door with Drywall Flange

This is a standout option for seamless, concealed installations in drywall walls—perfect when aesthetics matter in finished residential or commercial spaces.

• Key Specs:
  • Door size: 24" x 36" (great mid-size for accessing valves, ducts, or wiring without being overly large).
  • Flange: Drywall bead flange (corner bead design) — apply tape and compound over it for an invisible look once finished.
  • Material: Galvanneal steel construction for durability and corrosion resistance.
  • Insulation: Mineral wool (thick, effective for limiting heat transfer).
  • Fire Rating: 3-hour UL certified for vertical walls (and suitable for ceilings in smaller sizes; confirm per project needs).
  • Features: Piano hinge for smooth operation, ring/tool-key operated slam latch (self-latching), designed for easy flush integration.
  • Price: Approximately $508.10.

Why recommend it for walls? The drywall flange makes this ideal for modern builds where you want the door to disappear into the wall surface. It's highly contractor-friendly for quick taping/mudding, reduces visible hardware, and meets strict fire codes. Use this in hallways, utility rooms, or multi-family projects for a clean, professional finish. It's often preferred over exposed flange models for its aesthetic edge.

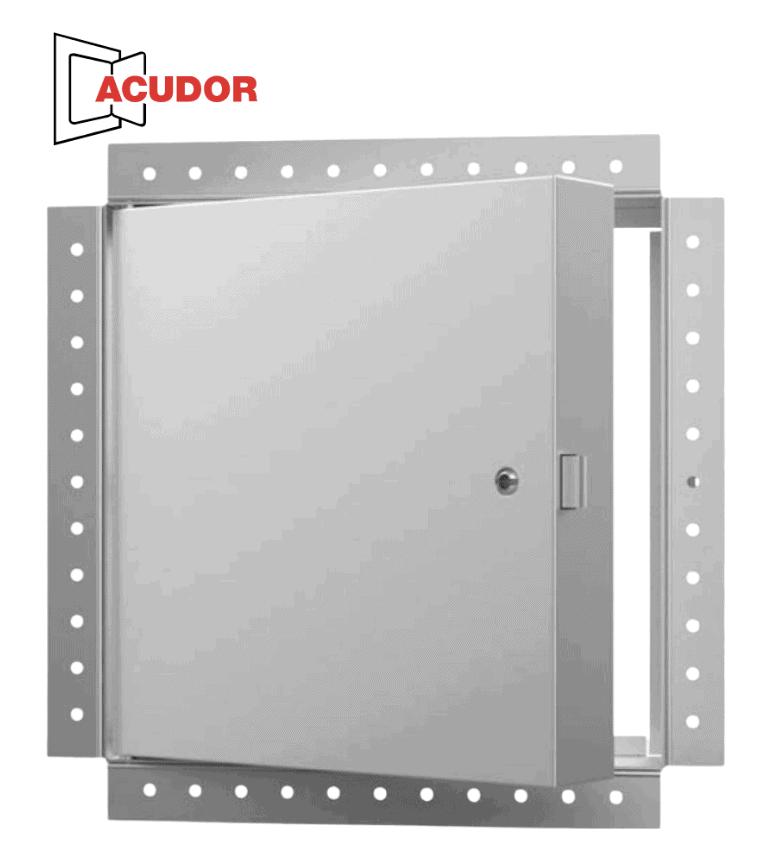

2. Acudor FW-5050-DW 36 x 48 Fire Rated Insulated Access Door (Drywall Version)

This larger drywall-flanged model from Acudor offers excellent coverage for bigger wall openings while maintaining a flush, concealed appearance.

• Key Specs:
  • Door size: 36" x 48" (one of the maximum sizes for many fire-rated applications).
  • Flange: Concealed drywall flange (1" wide, flush to frame with reinforced edges).
  • Material: 16-gauge steel door and mounting frame for heavy-duty strength.
  • Insulation: Yes (designed to control temperature rise/heat transmission).
  • Fire Rating: UL 1-1/2 hour "B" label for walls (ULC 2-hour optional); not rated for ceilings at this size.
  • Features: Concealed hinge, self-closing and self-latching mechanism (universal bolt with knurled knob or flush key operation), inside latch release for safety, prepped for cylinder locks if needed.
  • Finish: Prime-coated white alkyd baked-on enamel (easy to paint-match).
  • Price: Approximately $582.00.

Why recommend it for walls? This is a go-to for commercial or larger residential projects needing substantial access (e.g., to vertical shafts, major ductwork, or equipment). The self-closing/self-latching design ensures compliance without manual effort, and the concealed flange allows for a seamless drywall finish. Contractors love the robust build and added safety features like the inside release—great for high-traffic or high-risk areas.

3. Acudor FW-5050 36 x 48 Fire Rated Insulated Access Door (Standard Flange Version)

This is the versatile, exposed-flange sibling to the above—ideal when a visible frame is acceptable or preferred for certain finishes.

• Key Specs:
  • Door size: 36" x 48".
  • Flange: 1" wide exposed flange (flush to frame with reinforced edges).
  • Material: 16-gauge steel door and mounting frame.
  • Insulation: Yes (focus on temperature rise control).
  • Fire Rating: UL 1-1/2 hour "B" label for walls (ULC 2-hour optional); not rated for ceilings at this size.
  • Features: Concealed hinge, self-closing and self-latching (same universal bolt system), inside latch release, lock prep available.
  • Finish: Prime-coated white alkyd baked-on enamel.
  • Price: Approximately $582.40.

Why recommend it for walls? Choose this when you need the same large size and heavy-duty performance but don't require full concealment. The exposed flange simplifies installation on various surfaces (gypsum, masonry, etc.) and provides a clean, professional look after painting. It's a reliable workhorse for industrial, institutional, or multi-unit residential projects where quick mounting and durability are priorities.

Compliance and Safety Considerations

Fire rated access doors must meet stringent standards to function in walls. Vertical assemblies require 3-hour ratings under UL 10B, testing for flame penetration and heat transfer.

Ensure doors are labeled with fire ratings and installed per manufacturer guidelines to maintain warranties. Non-compliance can lead to failed inspections or insurance issues.

Regular testing and maintenance, like checking latches and hinges, preserve performance. For retrofits, verify compatibility with existing wall ratings.

Ready to equip your build with reliable fire rated access doors for walls? Visit spycor.com to browse the full Cendrex PFI and Acudor fire rated series and place your order today.

FAQ Section

What is the difference between fire rated access doors for walls and ceilings?

Wall doors (vertical) focus on 3-hour ratings with neutral pressure, while ceiling (horizontal) doors may limit to 1 hour in combustible setups. Wall models often have larger size options.

How do I choose the right size for my project?

Measure the required opening for access needs. For walls, up to 48x48 inches is available, but ensure the area doesn't exceed 2304 square inches for ratings.

Are these doors suitable for outdoor walls?

While durable, they're designed for interior use. For exterior, consider weatherproof models, but consult Spycor for specifics.

What maintenance do fire rated access doors require?

Annual inspections of hinges, latches, and seals. Clean with mild soap; repaint if needed to match walls.

Can I paint over the door?

Yes, the powder coat primer accepts standard paints for seamless integration.

Do these doors come with warranties?

Spycor provides manufacturer warranties; details vary by model, typically covering defects for 1-5 years.
