Building envelope failure is one of the most costly issues facing modern construction. As building codes become more stringent and weather patterns more unpredictable, the demand for high-performance moisture management systems has never been higher. Whether you are designing a high-end residential custom home or managing a large-scale commercial project, the longevity of the structure depends entirely on how well it breathes and drains.

Among the various technologies available today, the DELTA®-DRY Ventilated Rainscreen has emerged as a category-leading solution. This high-performance moisture protection system does more than just block water; it manages the physics of air and moisture to ensure walls stay dry for decades.

The Evolution of the Building Envelope:

Why a Rainscreen is Mandatory

Traditional construction relied on "face-sealed" systems, where the exterior cladding was the only line of defense against rain. However, no cladding is perfectly waterproof. Over time, wind-driven rain, solar vapor drive, and capillary action allow moisture to penetrate behind the siding. If that moisture becomes trapped, it leads to mold, rot, and structural degradation.

A rainscreen creates a dedicated air space between the cladding and the water-resistive barrier (WRB). This gap serves two critical functions:

1. Capillary Break: It prevents water from being "sucked" into the wall assembly.

2. Ventilation: It allows air to circulate, drying out any incidental moisture.

While many products claim to offer these benefits, the DELTA®-DRY Ventilated Rainscreen utilizes a unique "dual-chamber" design that sets it apart from traditional mesh-based or furring-strip systems.

What is DELTA®-DRY Ventilated

Rainscreen?

Manufactured by Dörken, DELTA®-DRY is a heavy-duty, high-density polyethylene (HDPE) membrane with a unique "stud-and-channel" profile. Unlike flat housewraps or flimsy entangled meshes, DELTA®-DRY is a semi-rigid rainscreen that provides a consistent, structural drainage plane.

It is designed for use behind all major cladding types, including:

• Fiber cement siding

• Vinyl and composite siding

• Stucco and manufactured stone veneer

• Brick masonry

• Metal panels

The Science of the Dual-Chamber Design

The primary reason DELTA®-DRY is frequently specified in high-performance builds is its patented dual-chamber design. Most rainscreens only provide a gap between the cladding and the rainscreen itself. DELTA®-DRY provides ventilation on both sides of the membrane.

1. The Outward-Facing Side (Cladding Side)

The channels on the front of the membrane allow for rapid drainage of bulk water that penetrates the cladding. This side also facilitates airflow, which helps dry the back of the siding, preventing the cupping or warping often seen in wood or fiber cement products.

2. The Inward-Facing Side (Sheathing Side)

This is where DELTA®-DRY truly excels. The channels on the back of the membrane allow for the ventilation of water vapor that migrates from the interior of the building. This prevents "solar vapor drive"—a phenomenon where the sun heats wet cladding, forcing moisture inward toward the cool, air-conditioned interior sheathing.

Key Benefits of DELTA®-DRY for

Commercial and Residential Projects

Complete Vapor Permeability

Because DELTA®-DRY is not a solid film but a structured membrane that creates air gaps, it allows the entire wall assembly to breathe. This is essential for preventing the "sandwich effect," where moisture is trapped between two impermeable layers.

Unmatched Durability

Made from high-density polyethylene (HDPE), DELTA®-DRY is incredibly tough. It is resistant to chemicals, acids, and soil alkalis. Unlike some mesh rainscreens that can compress over time under the weight of heavy cladding (like stone or brick), the rigid structure of DELTA®-DRY maintains its drainage path for the life of the building.

Reduced Energy Costs

A dry wall is an efficient wall. When insulation gets damp, its R-value plummets. By ensuring the insulation and sheathing remain dry year-round, DELTA®-DRY helps maintain the thermal performance of the building envelope, leading to lower HVAC costs for the owner.

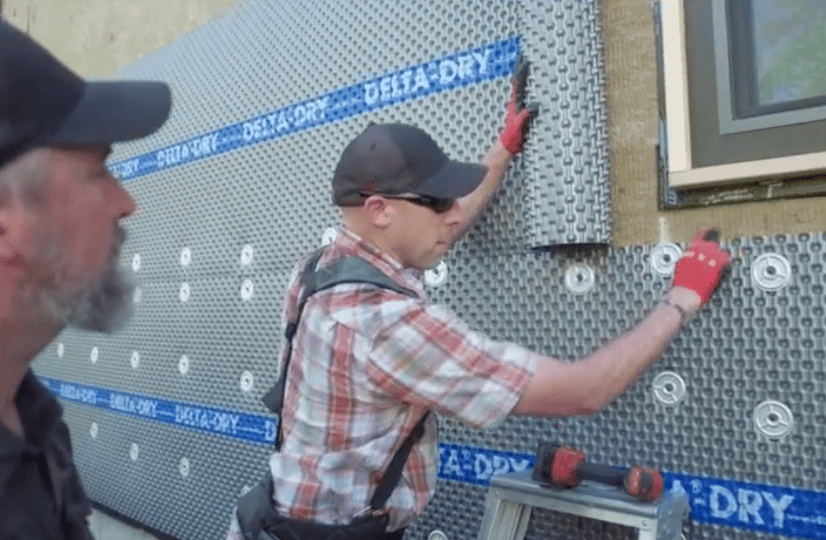

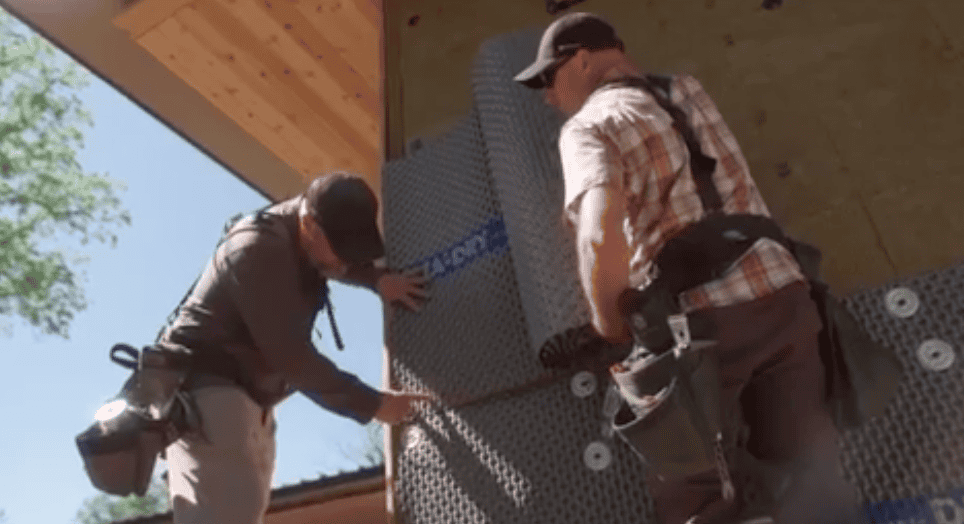

Simplified Installation

Time is money on a job site. DELTA®-DRY is lightweight and easy to handle. It can be easily cut with a utility knife and fastened with standard nails or staples. Because it provides its own structural gap, it eliminates the need for labor-intensive pressure-treated wood furring strips in many applications.

Comparing DELTA®-DRY to Alternative

Rainscreen Solutions

When choosing a rainscreen, contractors and architects usually look at three categories:

1. Furring Strips: Traditional but labor-intensive. They can also rot if not treated properly and do not provide a continuous capillary break across the entire wall surface.

2. Entangled Mesh: These are "scrub-pad" style mats. While effective for drainage, they can compress under the weight of heavy cladding and do not offer the dual-chamber ventilation found in DELTA®-DRY.

3. Structured HDPE (DELTA®-DRY): The gold standard. It offers the structural integrity of furring strips with the full-surface protection of a membrane, plus the added benefit of back-side ventilation.

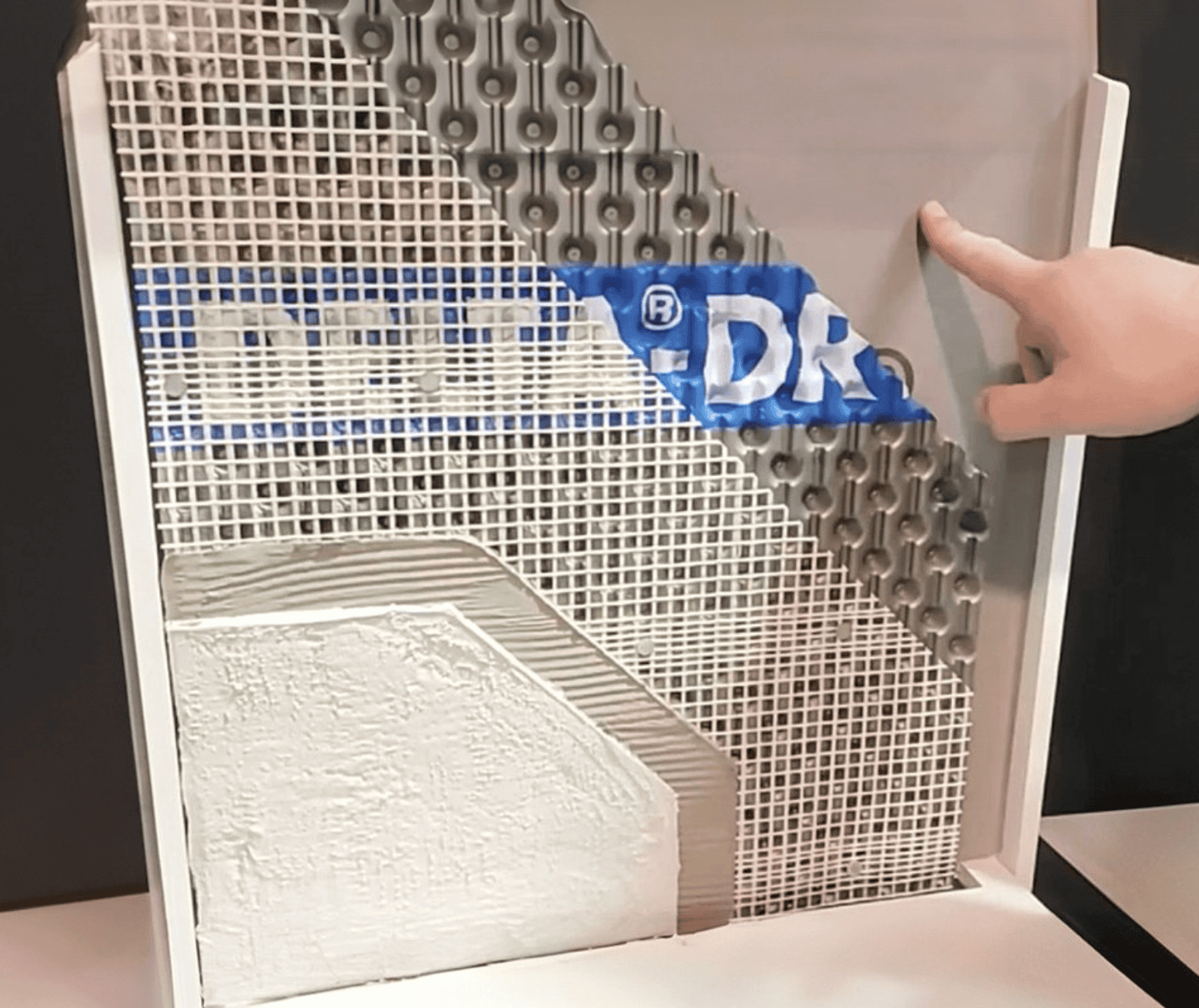

Application Focus: Stucco and Manufactured Stone

Stucco and manufactured stone are "reservoir claddings," meaning they soak up water like a sponge. When the sun hits these surfaces, the moisture is pushed inward. DELTA®-DRY is the ultimate solution for these materials because it creates a physical barrier that stops solar vapor drive in its tracks while providing a clear path for liquid water to exit at the bottom of the wall.

How to Optimize Your Build with DELTA®-DRY

To ensure the highest level of protection, DELTA®-DRY should be part of a complete system. This includes:

• DELTA®-FLASHER: For proper window and door detailing.

• DELTA®-BUG SCREEN: To prevent insects from entering the ventilation gaps at the top and bottom of the wall.

• High-Quality WRB: Use DELTA®-DRY over a high-performance weather-resistive barrier like DELTA®-VENT S for maximum breathability.

Protect Your Investment

Whether you are a developer looking to reduce liability and warranty claims or a homeowner wanting to ensure your "forever home" stays healthy, the rainscreen system you choose matters. The DELTA®-DRY Ventilated Rainscreen offers the most advanced moisture management technology on the market, providing a dual-ventilation system that is unmatched by competitors.

Don’t leave your building's health to chance. Ensure your wall system is ventilated, drained, and dry.

Order Now at spycorbuilding.com to get the best pricing and expert support for your DELTA®-DRY Ventilated Rainscreen needs.

Frequently Asked Questions (FAQ)

1. What is the main difference between DELTA®-DRY and a standard housewrap?

Standard housewrap is a thin layer designed to stop liquid water from hitting the sheathing. However, it does not create a physical space for drainage or airflow. DELTA®-DRY is a 3D structured membrane that creates a 10mm (approx.) air gap, allowing for both rapid drainage and convective drying, which housewrap cannot provide on its own.

2. Can DELTA®-DRY be used behind fiber cement siding like James Hardie?

Yes. DELTA®-DRY is highly recommended for fiber cement siding. It prevents the back of the siding from staying damp, which significantly extends the life of the paint or finish and prevents the boards from absorbing moisture and expanding.

3. Does DELTA®-DRY replace the need for a weather-resistive barrier (WRB)?

While DELTA®-DRY is a powerful drainage plane, it is typically used in conjunction with a high-quality WRB (like DELTA®-VENT S). The WRB acts as the primary air barrier and water-resistive layer, while DELTA®-DRY provides the drainage and ventilation gap.

4. Is DELTA®-DRY fire-rated?

DELTA®-DRY is made from HDPE. For commercial projects requiring specific fire-resistance ratings (such as NFPA 285), Dörken offers specific versions and assembly instructions to ensure compliance with local building codes. Always check your specific project requirements.

5. How does DELTA®-DRY prevent bugs from getting behind the walls?

When installing DELTA®-DRY, it is standard practice to use a DELTA®-BUG SCREEN at the top and bottom termination points. This specialized mesh allows air and water to pass through but is fine enough to keep insects and debris out of the rainscreen cavity.

6. Where can I buy DELTA®-DRY Ventilated Rainscreen online?

You can purchase the full line of Dorken Delta products, including the DELTA®-DRY Ventilated Rainscreen, directly from spycorbuilding.com. We offer competitive shipping and technical support for all your building envelope needs.

7. Can I use DELTA®-DRY in a basement application?

While DELTA®-DRY is designed for above-grade wall systems, Dörken offers other specialized membranes like DELTA®-MS specifically for foundation waterproofing and drainage. Ensure you are using the correct "DELTA" product for your specific application.
