A wet foundation is the most expensive mistake a builder can make. For home builders and contractors, the choice of foundation protection determines whether a project stays dry for decades or results in a "callback" nightmare.

While traditional spray-on damp-proofing has been the industry standard for years, it often fails when the foundation settles and cracks. Platon® Foundation Wrap solves this by creating a permanent, physical barrier that manages water and air simultaneously.

If you are looking for a high-performance foundation drainage membrane that works in any weather and on any substrate, here is why Platon is the professional’s choice.

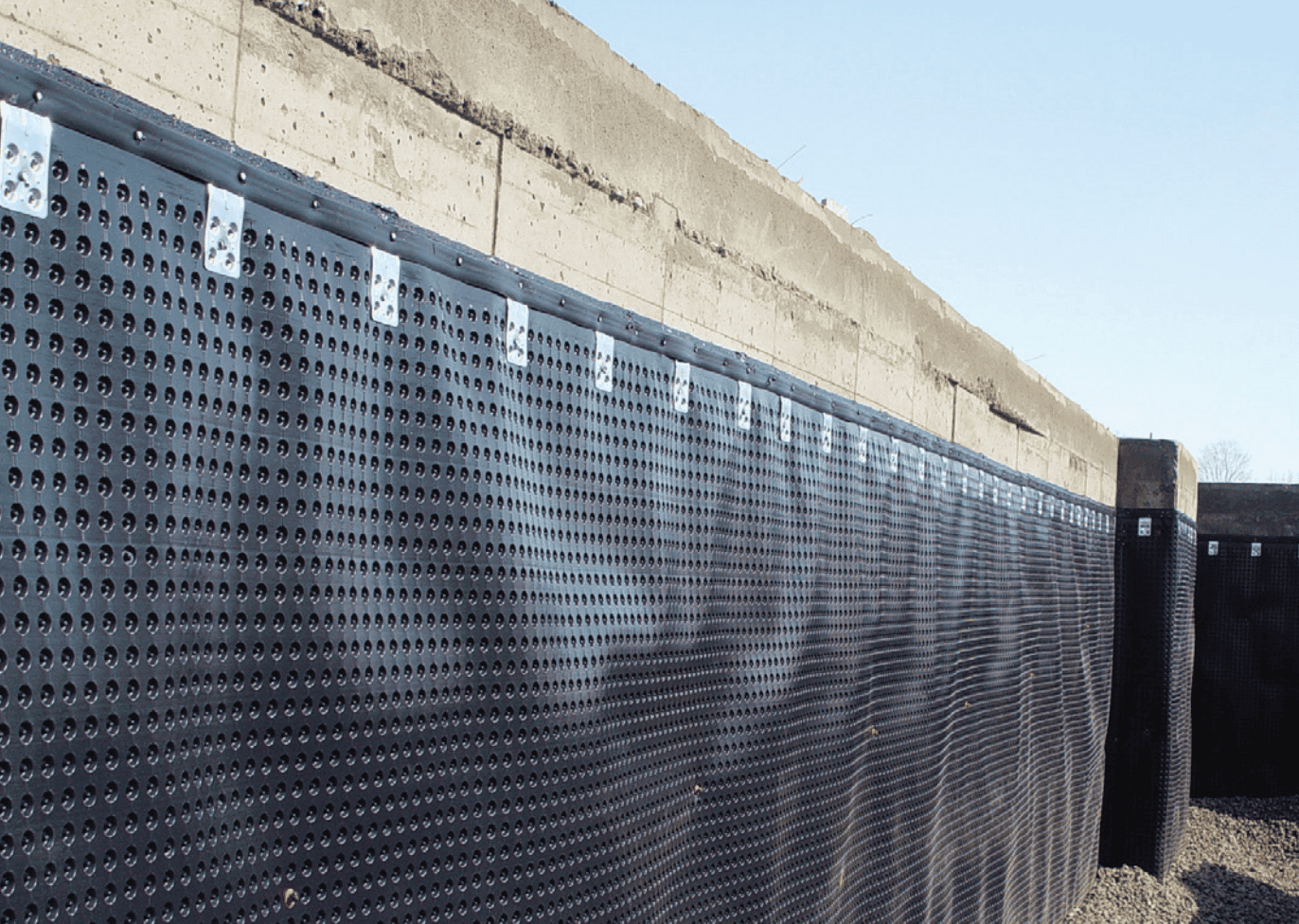

What is Platon Foundation Wrap?

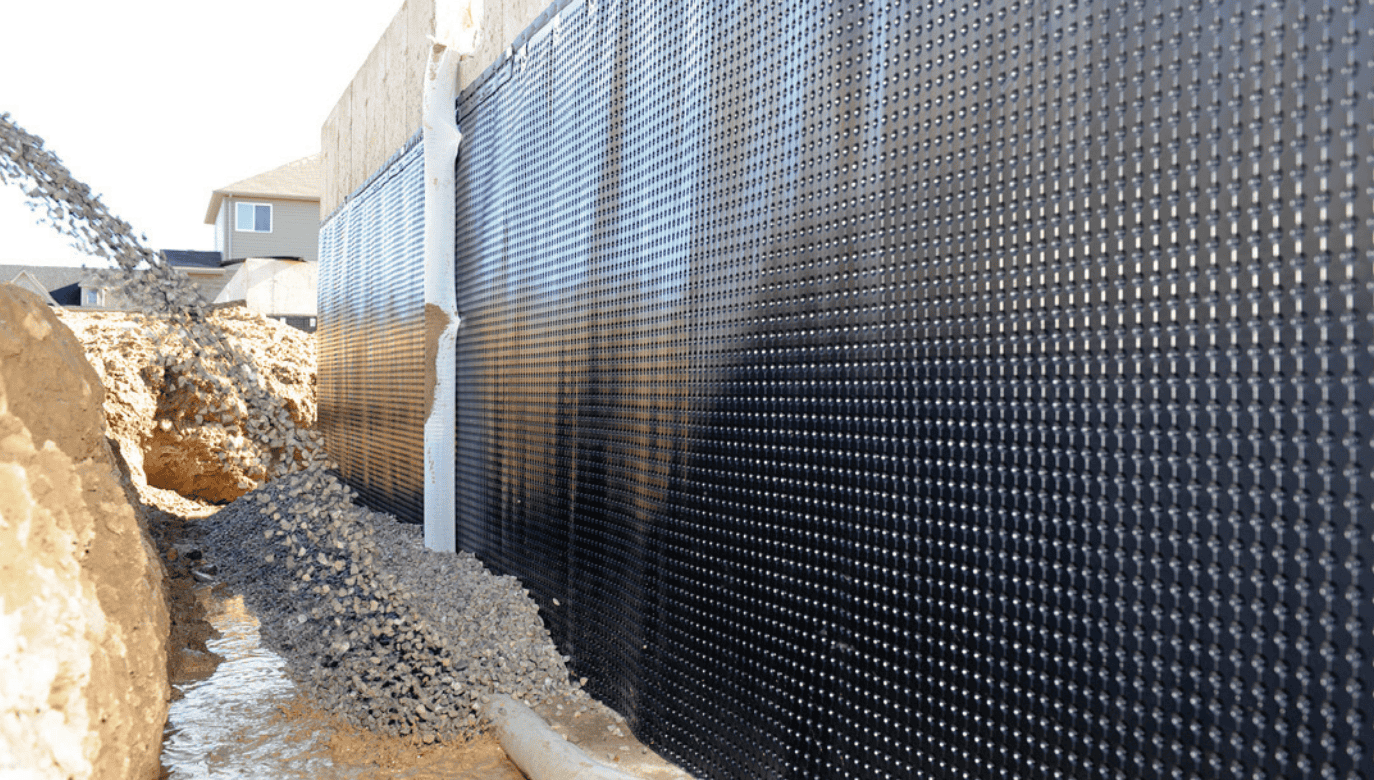

Platon is a high-density polyethylene (HDPE) dimpled membrane. Unlike sprays that bond to the wall, Platon is mechanically fastened. Its unique "dimples" create a 1/4-inch air gap between the foundation wall and the backfilled soil.

This air gap serves two critical functions:

1. Hydrostatic Pressure Relief: It allows water to fall straight down to the perimeter drain (footing tile).

2. Foundation Breathing: It allows moisture from the curing concrete to escape, keeping the interior basement walls dry and preventing mold growth.

Top 5 Benefits of Platon Waterproofing for

Contractors

1. Installation in Any Weather

Time is money on a job site. Spray-applied membranes require dry walls and specific temperature windows to cure. You can install Platon Foundation Wrap in the rain, snow, or freezing cold. As long as the crew can stand the weather, the job stays on schedule.

2. Bridging Foundation Cracks

Concrete eventually cracks. When a foundation settles, spray-on coatings often tear at the crack, leading to leaks. Because Platon is a physical sheet that "floats" over the wall, it bridges cracks effortlessly. Even if the wall shifts, the membrane remains intact.

3. Compatible with All Foundation Types

Whether you are working with poured concrete, Insulated Concrete Forms (ICF), or Concrete Masonry Units (CMU/Block), Platon is compatible. It is particularly effective for ICF builds because it protects the foam from rocks during backfill without requiring a separate protection board.

4. 30-Year Leak-Free Warranty

For a builder, the best warranty is the one you never have to use. Platon offers a 30-year product warranty, providing homeowners with peace of mind and protecting the builder's reputation for quality construction.

5. Simple, Fast Application

With the Platon SpeedClip system, a two-person crew can wrap an entire residential foundation in just a few hours. There is no waiting for "tack-dry" times, meaning you can backfill the same day you install.

How Platon Compares to Others: DMX

Foundation Wrap vs. Platon

A common question in the field is: What does DMX foundation wrap do compared to Platon?

While both are dimpled membranes, Platon’s HDPE formula is specifically engineered for high compression strength. In commercial builds where backfill pressure is intense, Platon maintains its air gap where thinner membranes might flatten. Additionally, Platon is made from 85% recycled content, making it the superior choice for LEED-certified or "Green" building projects.

When you choose Platon, you aren't just buying a barrier—you're buying a structural drainage system that is built to withstand the physical rigors of a busy job site.

Technical Specifications for Commercial

Builds

For commercial contractors, performance under pressure is the priority. Platon® Foundation Wrap meets and exceeds building code requirements:

• CCMC 12266-R: Fully approved as both a primary drainage layer and a foundation wrap, ensuring compliance with strict Canadian and international building standards.

• Compression Strength: Platon is rated to withstand high-load soil pressure, ensuring the dimples do not collapse. This maintains a permanent flow path for water and air, even at significant depths where soil weight is at its peak.

• Chemical Resistance: The HDPE material is chemically inert, meaning it is highly resistant to soil acids, alkalis, and salts that typically degrade liquid-applied membranes. It also provides a physical barrier against root penetration and fungi.

• Thermal Stability: Unlike bituminous coatings that can become brittle in winter or soft in summer, Platon remains flexible and stable across a wide temperature range, ensuring it won't crack during freeze-thaw cycles.

• Low Vapor Permeance: With a near-zero vapor transmission rate, it serves as an effective vapor barrier, stopping moisture from migrating through the concrete and into the building's interior envelope.

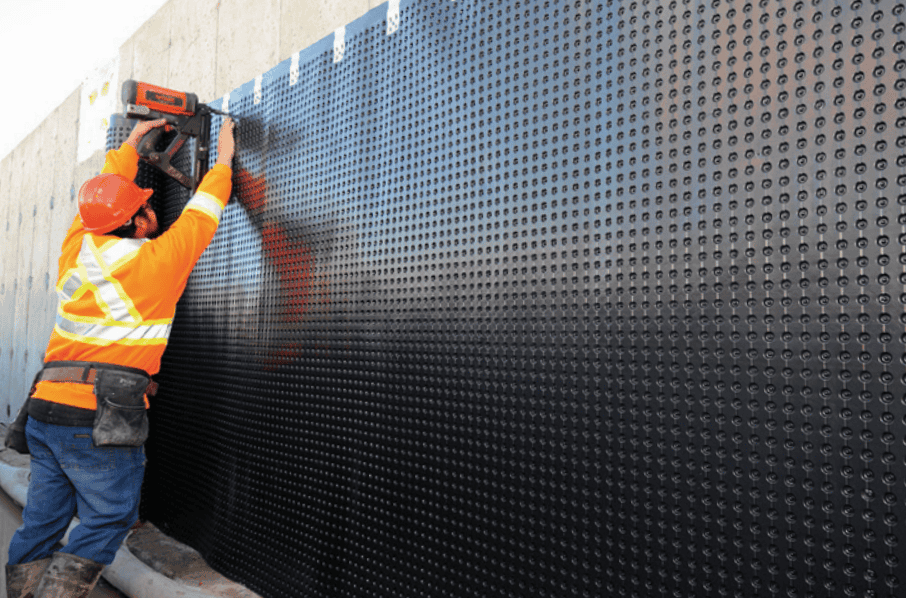

Best Practices for Installing Foundation

Drainage Membrane

To ensure a 100% leak-proof system, follow these pro tips:

1. Clean the Footing: Ensure the footing is clear of debris so the membrane can transition smoothly.

2. Use SpeedClips: Do not skimp on fasteners. Use SpeedClips every 12 inches to ensure the membrane stays tight against the wall during backfilling.

3. Seal the Top: Use Platon Molding (trim) along the top edge to prevent dirt and debris from clogging the air gap.

4. Overlap Correctly: Always overlap vertical seams by at least 6 inches and horizontal seams by 12 inches to maintain the drainage plane.

Protect Your Foundation Today

Don't risk your reputation on inferior damp-proofing. Platon Foundation Wrap is the most reliable way to ensure a dry, healthy basement for residential homes and commercial structures.

Stop moisture before it reaches the concrete. For contractors who value speed and homeowners who value a dry basement, Platon is the ultimate solution.

Click Here to order Platon Foundation Wrap.

Frequently Asked Questions (FAQ)

Is Platon a waterproof membrane or a drainage membrane?

Platon acts as both. It is a waterproof barrier that prevents soil moisture from touching the wall, and it is a drainage membrane that uses an air gap to channel liquid water to the drainage tile.

Can I use Platon on ICF (Insulated Concrete Forms)?

Yes. Platon is one of the best choices for ICF because it protects the polystyrene foam from damage during backfill and does not require chemical adhesives that could melt the foam.

Does Platon replace the need for a weeping tile?

No. Platon is designed to work with a functional perimeter drainage system. It directs water down to the tiles, which then carry the water away from the structure.

Can Platon be used under a concrete floor slab?

Yes. Platon is excellent for "under-slab" applications. It creates a vapor barrier and a thermal break, making basement floors feel warmer and staying significantly drier.

What is the difference between Platon and spray-on tar?

Spray-on tar (damp-proofing) is a coating that can crack and peel. Platon is a heavy-duty plastic shield that bridges cracks and provides an air gap for drainage, offering significantly better long-term protection.
