Product Details

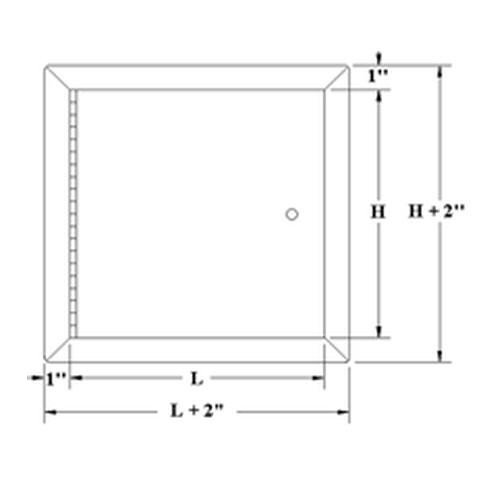

The PFN access door is not insulated and can only be used on fire rated walls. It comes with a 1? flange for an easy flush installation on any type of surface material. As per UL standards, once the installation is complete and the provided springs installed, this door will be self closing and self locking. It should not be used in situations where protection against temperature elevation is required. The largest fire rated PFN door available is: (36?? x 36??).

PFN fire rated access door specifications

Fire Rating:

2 hour fire barrier, rating 1? hours. Access/Door Frame Assembly (uninsulated) for installation in vertical wall assemblies. Maximum door size of: 36" x 36". Standards listed: NFPA 252-2003, UL 10b, UL-555, CAN/ULC S112 M90-R2001, CAN/ULC S104-10.

MEA # 507-06-M

Material: 16 gauge cold rolled steel
Hinge: Continuous piano hinge
Lock / Latch: Self latching tool-key operated latch and/or ring operated latch, both included
Inside panel release: Standard on all doors
Automatic panel closer: Standard on all doors
Finish: DuPont high quality grey powder coat
Packaging: Individually wrapped, 1 per box

Options

Material: Stainless steel #4 (brushed finish)
Lock / Latch: Hex head slam latch, handle operated slam latch, mortise preparation for cylinder (cylinder optional), mortise deadbolt lock
Finish: DuPont high quality white powder coat

The PFN access door can contribute directly to a project's ability to achieve LEED certification. You can dowload its LEED data sheets by clicking on any of the following LEED rating systems:
