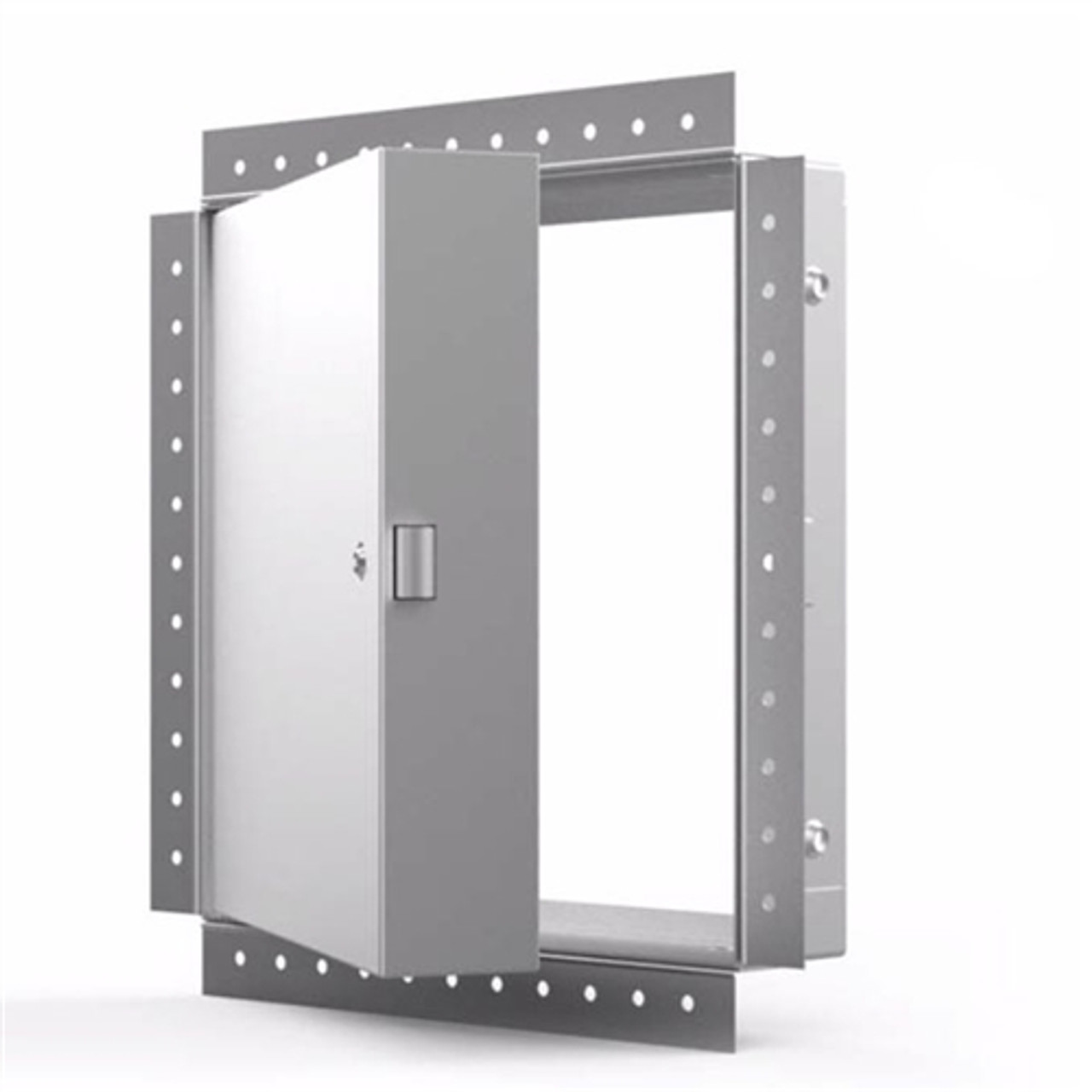

Fire Rated Insulated Access Door, for walls & ceilings Drywall - 22 X 30

Save big right now
$285.00
SKU:
FW-5050-DW-2230
Made With Quality Material
Technical Support Available
On Time Delivery
Safe & Secure Checkout

SSL Secure Payment

Orders are processed promptly and dispatched the next working day for fast delivery. Customers can expect quick arrival of packages. Further details can be found in the Terms of Service.

Product Details

*Wall Opening is +3/8" (9mm)

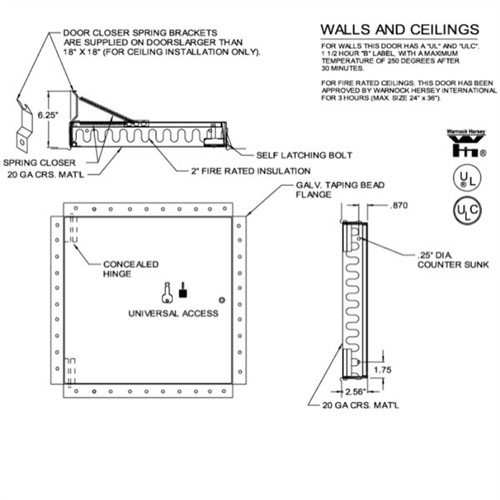

For detailed specification see submittal sheet

Application
  • For Wall & Ceiling applications.
  • This door should be used in walls when temperature rise or heat transmission is a factor.
Product Features
  • Concealed hinge
  • Self-latching / Self-closing
  • Self-closing & self-latching door mechanism
  • Inside latch release
  • Available with a removable door panel FB-5060
Access Door Specifications:
Material: Steel Door: 16 gauge
Mounting Frame: 16 gauge. Flush to frame with reinforced edges, flange 1" wide
Hinge: Concealed Fire Rating (Walls): UL 1-1/2 hour "B" label. ULC 2 hour "B" label. (optional) Max sizes of 36" x 48" and 24" x 79"
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel. Stainless Steel: Type 304 - #4 satin polish.
