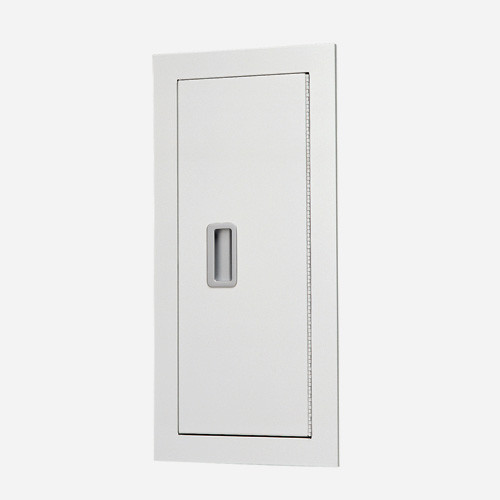

Larsen's Architectural Series Fully Recessed Fire Cabinet

Larsen's

Larsen's Architectural Series Fully Recessed Fire Cabinet

$110.19 - $353.16

SKU:: LASFR

Made With Quality Material

Technical Support Available

On Time Delivery

Safe & Secure Checkout

Current Stock:

SSL Secure Payment

Orders are processed promptly and dispatched the next working day for fast delivery. Customers can expect quick arrival of packages. Further details can be found in the Terms of Service.

Product Details

GENERAL DESCRIPTION: Larsen's Architectural Series is a traditional, value-added line of recessed, semi-recessed, and surface mounted fire extinguisher cabinets. These units are designed for all types of buildings and are equipped with the conventional door styles such as those pictured below. The standard door and trim material is steel, and optional materials include both aluminum and stainless steel. All doors are 1/2 inch thick and open 180 degrees. All doors have a satin finish pull handle with a self-adjusting roller catch; and a continuous piano hinge constructed of material which matches the door and trim.

	Model Number	Projection	Inside Box Dimensions	Outside Trim Dimensions H x W	Rough Opening	Complies with ADA	Ext.
	Model Number	Projection	Inside Box Dimensions	Outside Trim Dimensions H x W	H x W x D	Complies with ADA	Ext.
	2409-R1	5/16"	24 x 9? x 5*	27? x 13	25 x 10? x 5?	YES	5LB
Fire Rated	2409-R1	5/16"	24 x 9? x 5*	27? x 13	26^1/8x11^5/8x6^1/8	YES	5LB
	2409-R2	5/16"	24 x 9? x 6	27? x 13	25 x 10? x 6?	YES	10LB
Fire Rated	2409-R2	5/16"	24 x 9? x 6	27? x 13	26^1/8x11^5/8x7^1/8	YES	10LB
	2712-R	5/16"	27 x 12 x 8	30? x 15?	28 x 13 x 8?	YES	20LB
Fire Rated	2712-R	5/16"	27 x 12 x 8	30? x 15?	29^1/8x14^1/8x 9^1/8	YES	20LB

BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.

TRIM AND DOOR SPECIFICATION: Steel trims and doors are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered. Aluminum is the recommended material for applications in salt air and other corrosion prone environments.

Clear satin anodized finish is standard for all trims and doors, and a wide selection of optional color anodized finishes is available. To specify aluminum trim and door, use the prefix AL before the cabinet model number. Stainless steel trims and doors are one piece, constructed of #4 finish, 304 stainless steel. To specify stainless steel trim and door, use the prefix SS before the cabinet model number. All steel and stainless steel doors have a tubular, hollow-metal design. A sample of door and trim materials is pictured.

TO SPECIFY THE ARCHITECTURAL SERIES:

Select the required model number from the dimension chart under the Table button.
Use the appropriate prefix for the trim and door material. If steel - no prefix is required.
If aluminum - use AL. If stainless steel - use SS.
Select the door style from the pictures on this screen.
Other options: die cut lettering, special finishes (paint, color anodized aluminum or #8 stainless steel), Vigilante Alarm, "FIRE" Handle, Recessed Handle (see the "Exclusive Options for Extinguisher Cabinets" profile).
