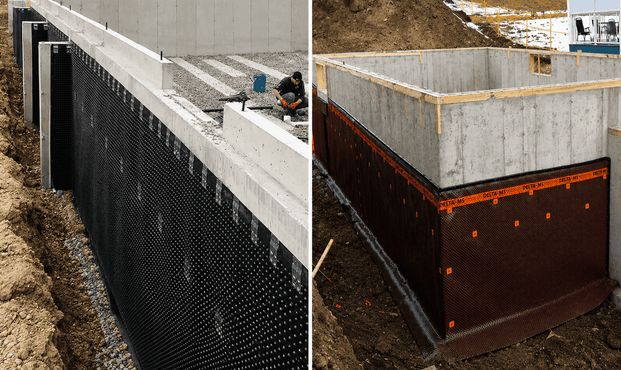

What Are Foundation Drainage Membrane Rolls — and Why Do They Matter on Large Jobs?

Foundation drainage membrane rolls are dimpled, high-density polyethylene (HDPE) sheets installed against below-grade foundation walls to manage water, prevent hydrostatic pressure buildup, and protect the structural integrity of the foundation. On large projects — multi-unit residential buildings, commercial developments, custom home subdivisions, and deep below-grade structures — choosing the right membrane roll is one of the most consequential waterproofing decisions a contractor or builder will make.

On small jobs, a suboptimal membrane choice is a manageable setback. On a large project covering thousands of square feet of foundation wall, the wrong choice affects installation speed, seam frequency, waste percentages, labor costs, and long-term warranty exposure.

The two most widely specified foundation drainage membrane rolls available at Spycor Building Products for large-scale applications are DELTA-MS by Dörken and Platon Foundation Wrap by Armtec. This post breaks down both in detail — specs, best-use applications, and a direct comparison — so you can make the right call before ordering.

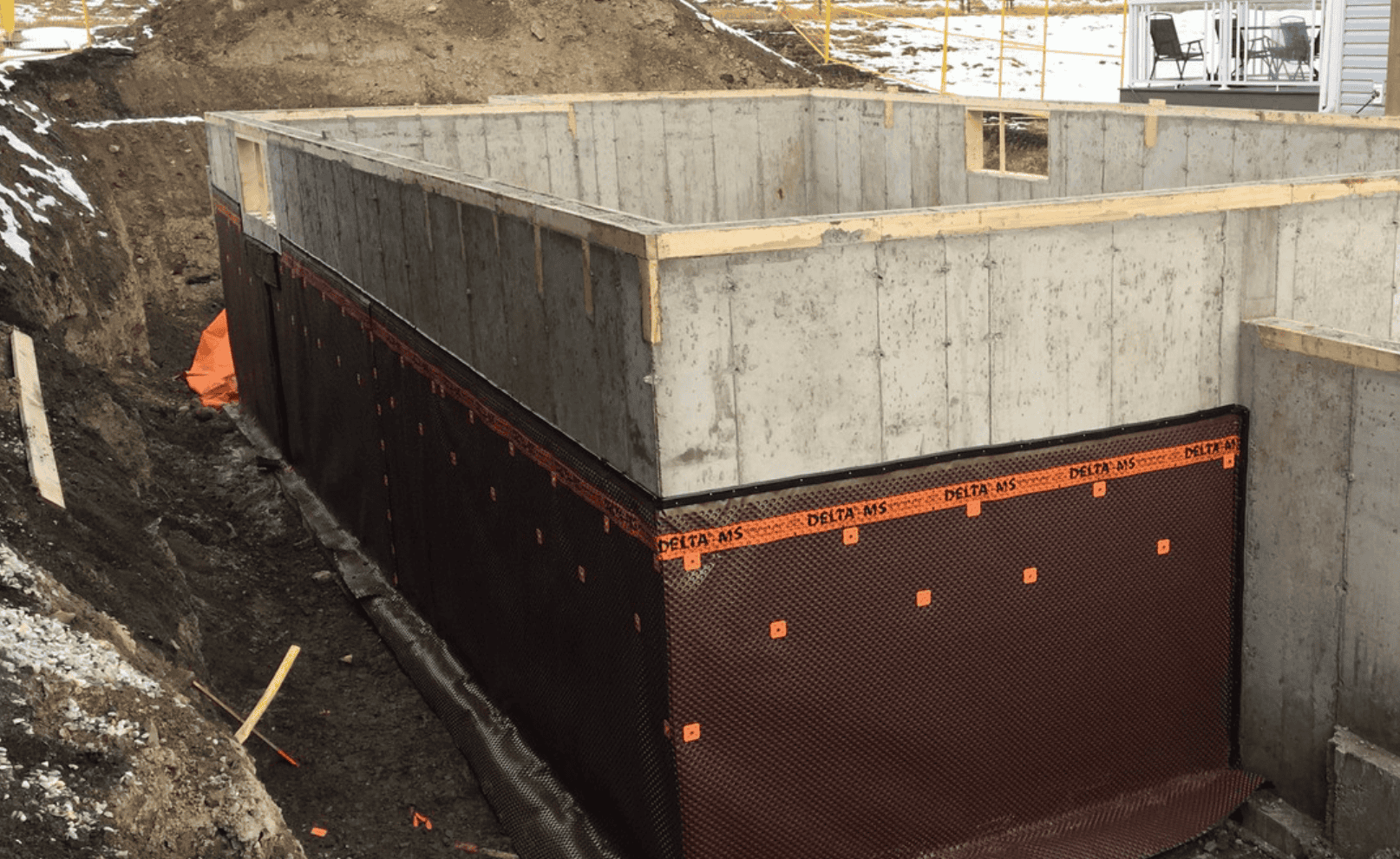

DELTA-MS Foundation Drainage Membrane

What It Is

DELTA-MS is a vacuum-formed dimpled polyethylene membrane engineered specifically for below-grade foundation wall protection and drainage. Its defining feature is an air-gap drainage system: the dimpled profile creates a physical separation between the membrane and the foundation wall, allowing any water that penetrates the backfill to travel freely downward by gravity to the perimeter footing drain — without ever contacting the wall surface.

Key Specifications

• Material: High-density polyethylene (HDPE), made with recycled content


• Compressive strength: ~5,200 psf — suitable for significant backfill loads


• Roll widths available: 3.5 ft, 5.0 ft, 6.0 ft, 6.6 ft, 7.0 ft, 8.0 ft, and 9.8 ft


• Roll length: 65.6 ft (20 m) per roll — consistent across all widths


• Coverage per roll (examples):

  • 5.0 ft × 65.6 ft = 328 sq ft/roll
  • 7.0 ft × 65.6 ft = 459 sq ft/roll
  • 8.0 ft × 65.6 ft = 525 sq ft/roll
  • 9.8 ft × 65.6 ft = 645 sq ft/roll


• Code approvals: International Residential Code (IRC), International Building Code (IBC), National Building Code of Canada, and all provincial/territorial codes

How DELTA-MS Works

The membrane is vacuum-formed into a consistent dimple pattern. When installed against the foundation wall (dimples facing outward toward the soil), the raised dimples hold the sheet away from the wall surface. This creates a continuous air gap that acts as both a capillary break and a drainage plane. Water traveling through the soil reaches the membrane, is blocked by the HDPE sheet, and redirects downward through the air gap to the footing drain system — eliminating hydrostatic pressure buildup.

A critical practical advantage: DELTA-MS can be installed as a standalone system without requiring surface-applied tar or asphalt preparations prior to installation.

Why DELTA-MS Excels on Large Projects

For large jobs, the DELTA-MS wide-roll format (up to 9.8 ft width) is the primary advantage. Taller foundation walls — common on commercial or multi-family projects — can be covered with fewer horizontal courses, reducing seam count, overlap material, and total installation time. The range of roll widths lets project managers match roll dimensions to actual wall height, minimizing waste on large-volume orders.

Shop DELTA-MS at → spycorbuilding.com

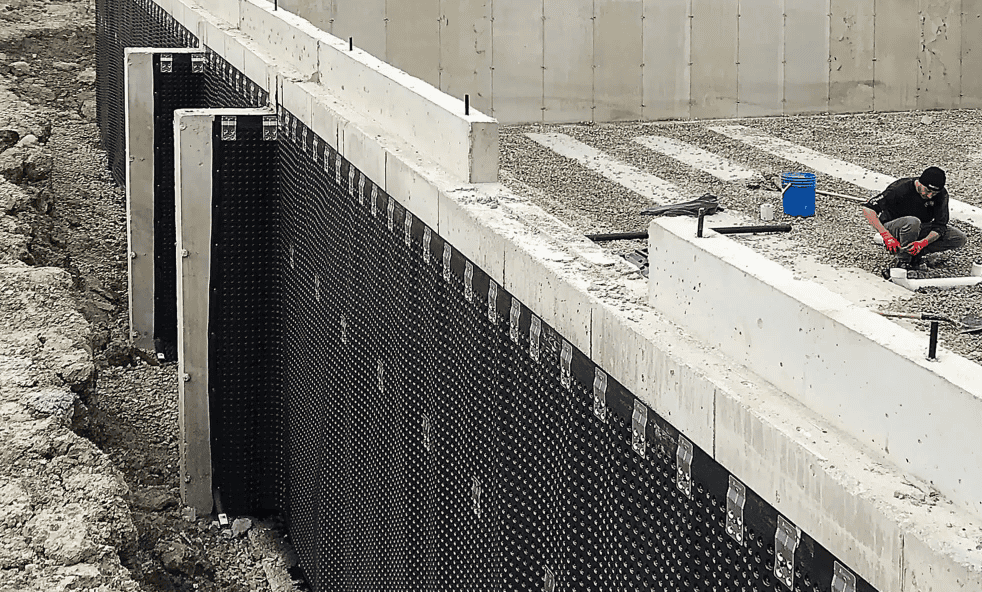

Platon Foundation Wrap

What It Is

Platon Foundation Wrap is a rugged, double-dimpled HDPE membrane manufactured by Armtec and widely specified for both below-grade wall waterproofing and under-slab moisture protection. The double-dimple design is Platon's defining technical differentiator — a patented geometry that creates a deeper, more robust air gap than standard single-dimple membranes, while simultaneously providing the ability to bridge minor foundation cracks.

Key Specifications

• Material: High-density polyethylene (HDPE), approximately 85% recycled content


• Thickness: 24-mil minimum in flat sections


• Dimple height: ~6 mm (double-dimple design)


• Roll widths available: 5.5 ft, 6.6 ft, 7.25 ft, 8.0 ft, 10.0 ft


• Roll length: 65.5–65.6 ft (20 m) per roll


• Coverage per roll (examples):


  • 5.5 ft × 65.5 ft = 354 sq ft/roll
  • 8.0 ft × 65.6 ft = 525 sq ft/roll
  • 10.0 ft × 65.5 ft = 655 sq ft/roll


• Skid options available: 12-roll skids for large orders (up to 7,860 sq ft per skid)


• Operating temperature range: −58°F to +176°F (−50°C to +80°C)


• Vapor permeability: ~0.05 perms (ASTM E96) — allows concrete to breathe



How Platon Foundation Wrap Works

Platon's double-dimpled sheet is installed against the foundation wall to create an impermeable vapor barrier and drainage air gap simultaneously. The deeper 6 mm dimple height versus standard single-dimple profiles resists soil compression more effectively — an important consideration in heavy clay soils or high-moisture environments where soil consolidates over time against the membrane.

Platon is fastened using its patented Speedclip system, which allows rapid installation in all weather conditions without specialized tools or equipment. The Speedclip fasteners also allow Platon to be installed on block walls, poured concrete, permanent wood foundations, existing foundations, and Insulated Concrete Forms (ICF).

Why Platon Excels on Large Projects

Platon's skid ordering format makes it purpose-built for large-scale procurement. Contractors ordering for multi-building developments or large commercial pours can purchase 12-roll skids — up to 7,860 sq ft in a single skid for the 10 ft width — which simplifies logistics, reduces per-roll handling, and makes large-volume budgeting straightforward.

The double-dimple geometry and ~85% recycled content also make Platon a strong choice on projects where specifications call for sustainable or recycled-content materials.

Shop Platon Foundation Wrap at → spycorbuilding.com

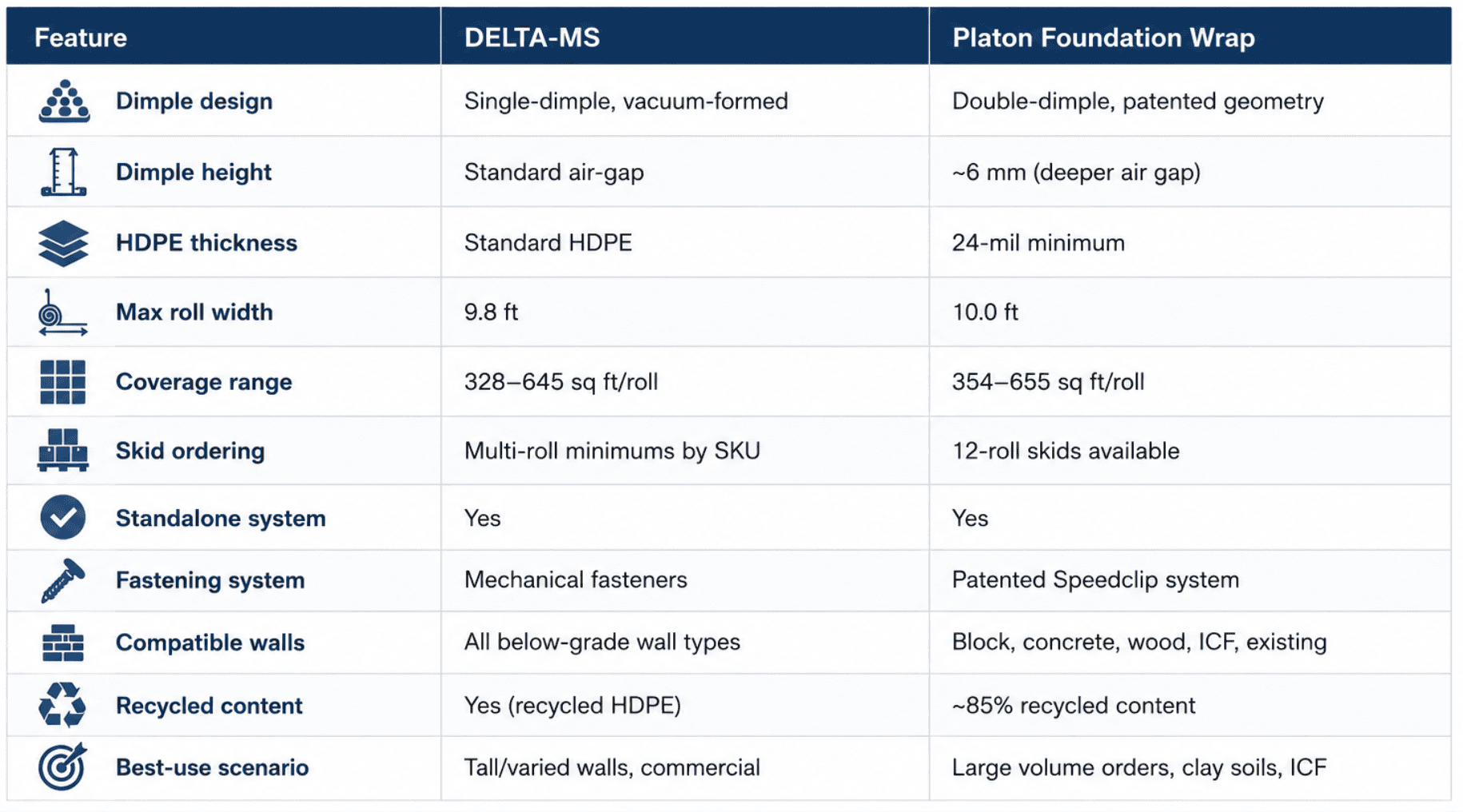

Head-to-Head Comparison: DELTA-MS vs. Platon Foundation Wrap

Which Foundation Membrane Roll Is Best for Large Projects?

Both DELTA-MS and Platon Foundation Wrap are among the best foundation membrane rolls available for large projects. The decision between them comes down to three factors: wall configuration, soil conditions, and procurement logistics.

Choose DELTA-MS when:

• Foundation walls vary in height across the project (multiple roll widths let you match coverage precisely)


• The project spec requires standalone dampproofing approval under IRC or IBC without additional coatings


• You need maximum flexibility in roll sizing to minimize waste and seam count on irregular or tall walls

Choose Platon Foundation Wrap when:

• The project involves heavy clay soils or high soil compression conditions where deeper dimple height improves long-term performance


• Large-volume skid ordering simplifies procurement and jobsite logistics


• The spec calls for crack-bridging capability or high recycled-content materials


• ICF (Insulated Concrete Form) foundations are in the scope

For very large developments, some contractors use both: DELTA-MS on above-grade transition zones or walls with significant height variation, and Platon on uniform below-grade walls where skid-quantity procurement delivers cost efficiency.

Coverage Planning for Large Projects

Accurate material estimation is critical on large jobs. Use these benchmarks:

DELTA-MS coverage estimates:

• 1,000 sq ft of foundation wall → approximately 2 rolls of the 8.0 ft × 65.6 ft size


• 5,000 sq ft → approximately 10 rolls (8 ft width) + 10–15% overage for overlaps and cuts


• 10,000+ sq ft → consider the 9.8 ft roll width to maximize coverage per unit and reduce seam frequency

Platon coverage estimates:

• 1,000 sq ft → approximately 2 rolls of the 8.0 ft × 65.6 ft size


• 5,000+ sq ft → consider 12-roll skids for logistics efficiency (one 10 ft skid = 7,860 sq ft)


• Always add 10% overage for overlaps at horizontal and vertical seams

General rule for large projects: Plan for 10–15% waste on complex wall configurations. On straight, uniform below-grade walls, 8–10% overage is typically sufficient.

Where to Order Foundation Membrane Rolls for Large Projects

Spycor Building Products stocks both DELTA-MS and Platon Foundation Wrap in multiple roll widths, with bulk ordering and skid quantities available for large-scale projects.

• DELTA-MS rolls: Available in 7 widths from 3.5 ft to 9.8 ft → Shop DELTA-MS at spycorbuilding.com


• Platon Foundation Wrap: Available in single rolls and 12-roll skids → Shop Platon at spycorbuilding.com

Frequently Asked Questions

What is the best foundation membrane roll for large commercial projects?

Both DELTA-MS and Platon Foundation Wrap are widely used on large commercial projects. DELTA-MS offers more roll width flexibility (up to 9.8 ft), while Platon offers deeper dimple height and skid-quantity ordering that simplifies large-volume procurement.

How many rolls of foundation membrane do I need for a large project?

Divide total square footage of foundation wall by the per-roll coverage of your chosen roll width, then add 10–15% for overlaps and waste. For example, a 5,000 sq ft wall using 8 ft × 65.6 ft rolls (525 sq ft/roll) requires approximately 10–11 rolls.

Can DELTA-MS and Platon be installed without additional waterproofing coatings?

Yes. Both DELTA-MS and Platon Foundation Wrap are approved as standalone foundation protection systems and do not require tar or asphalt surface preparation prior to installation.

What's the difference between single-dimple and double-dimple foundation membranes?

Single-dimple membranes (like DELTA-MS) create a standard air-gap drainage plane. Double-dimple membranes (like Platon) have a deeper ~6 mm air gap that resists soil compression more effectively and provides additional crack-bridging capability — advantages in heavy clay soil conditions.

Does Spycor Building Products sell foundation membrane rolls in bulk?

Yes. Platon Foundation Wrap is available in 12-roll skids for large-volume orders. DELTA-MS is available with multi-roll minimums by SKU. Contact Support@SPYCOR.com for freight quotes on bulk orders.
